🐦 Twitter/X serves over 500 million users globally, processing billions of tweets and interactions daily. This document outlines the comprehensive architecture that enables real-time social networking at massive scale with high availability.

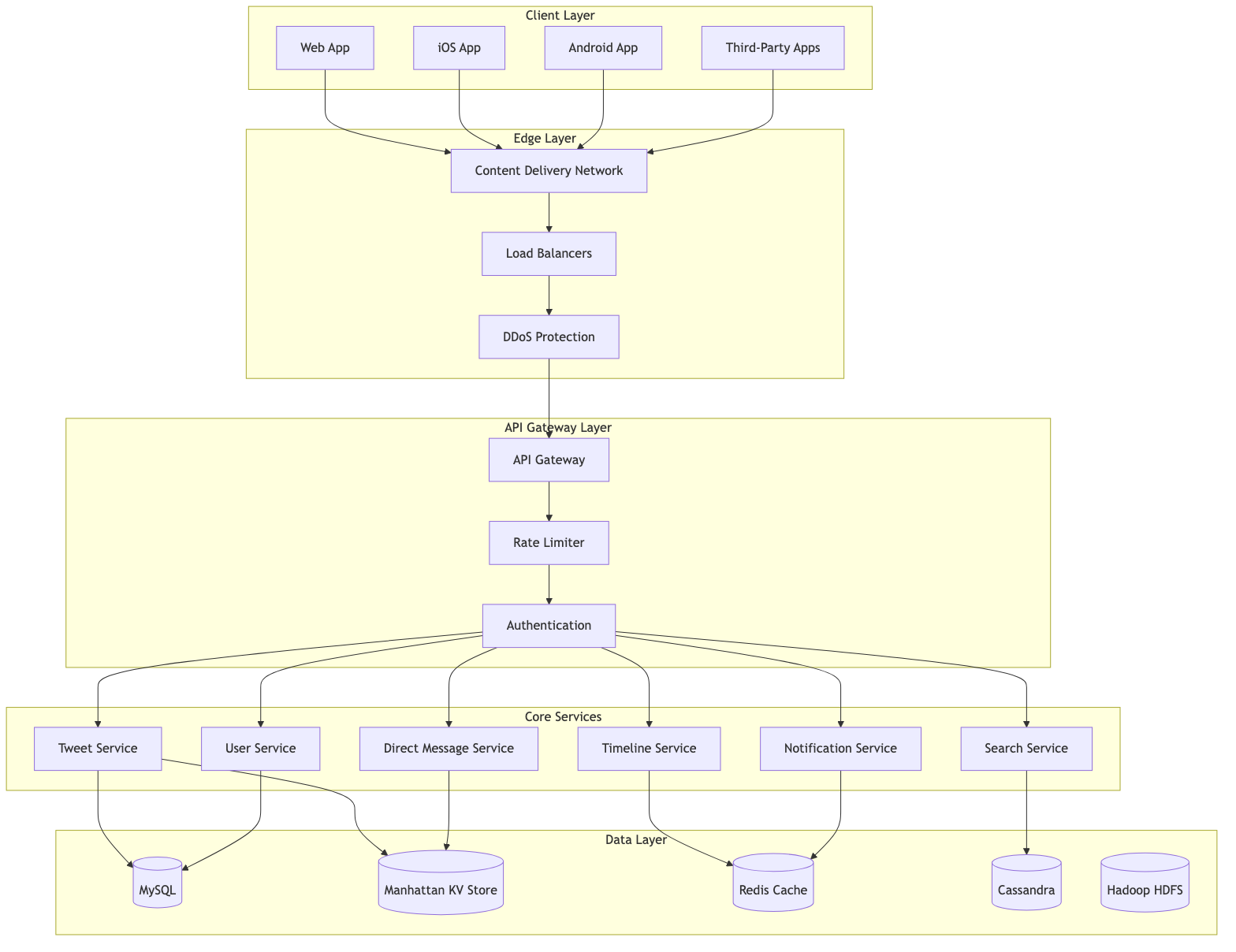

High-Level Architecture

Core Components

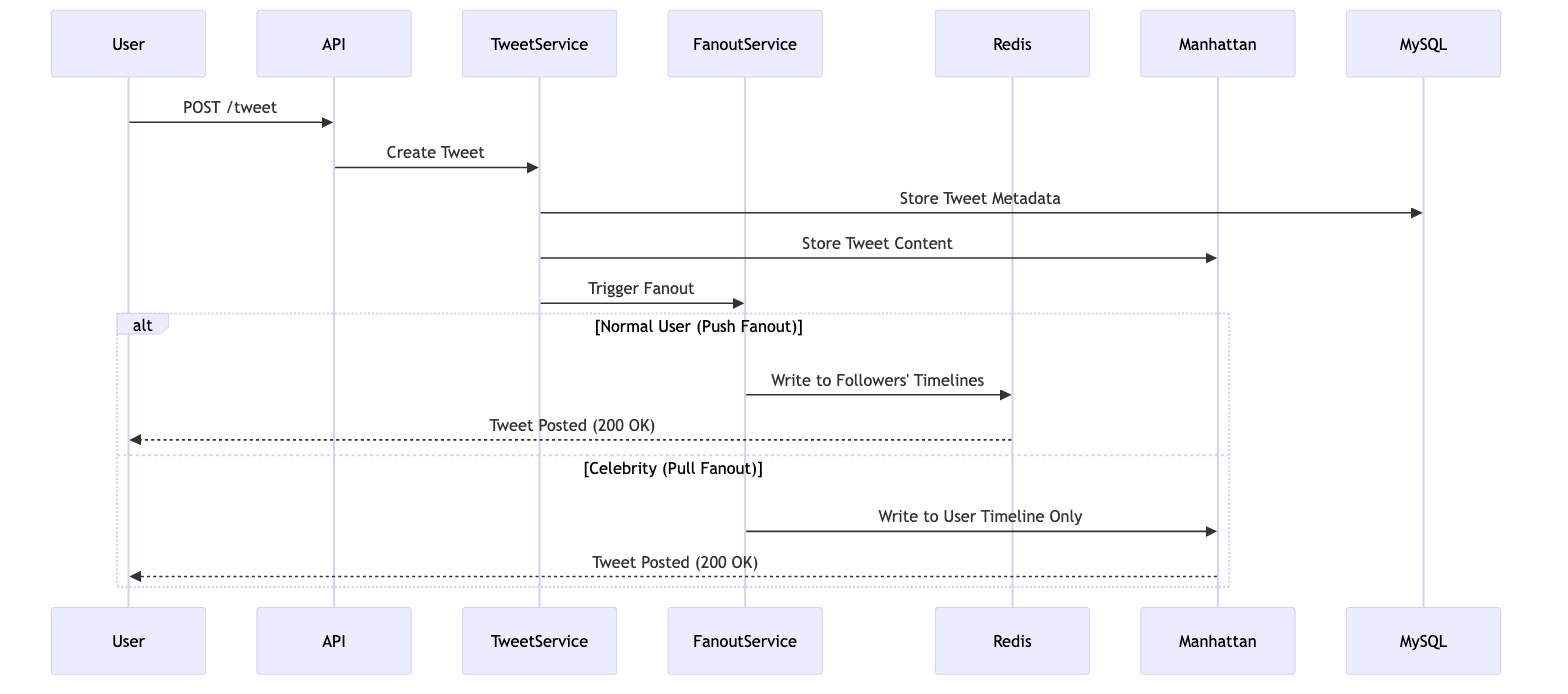

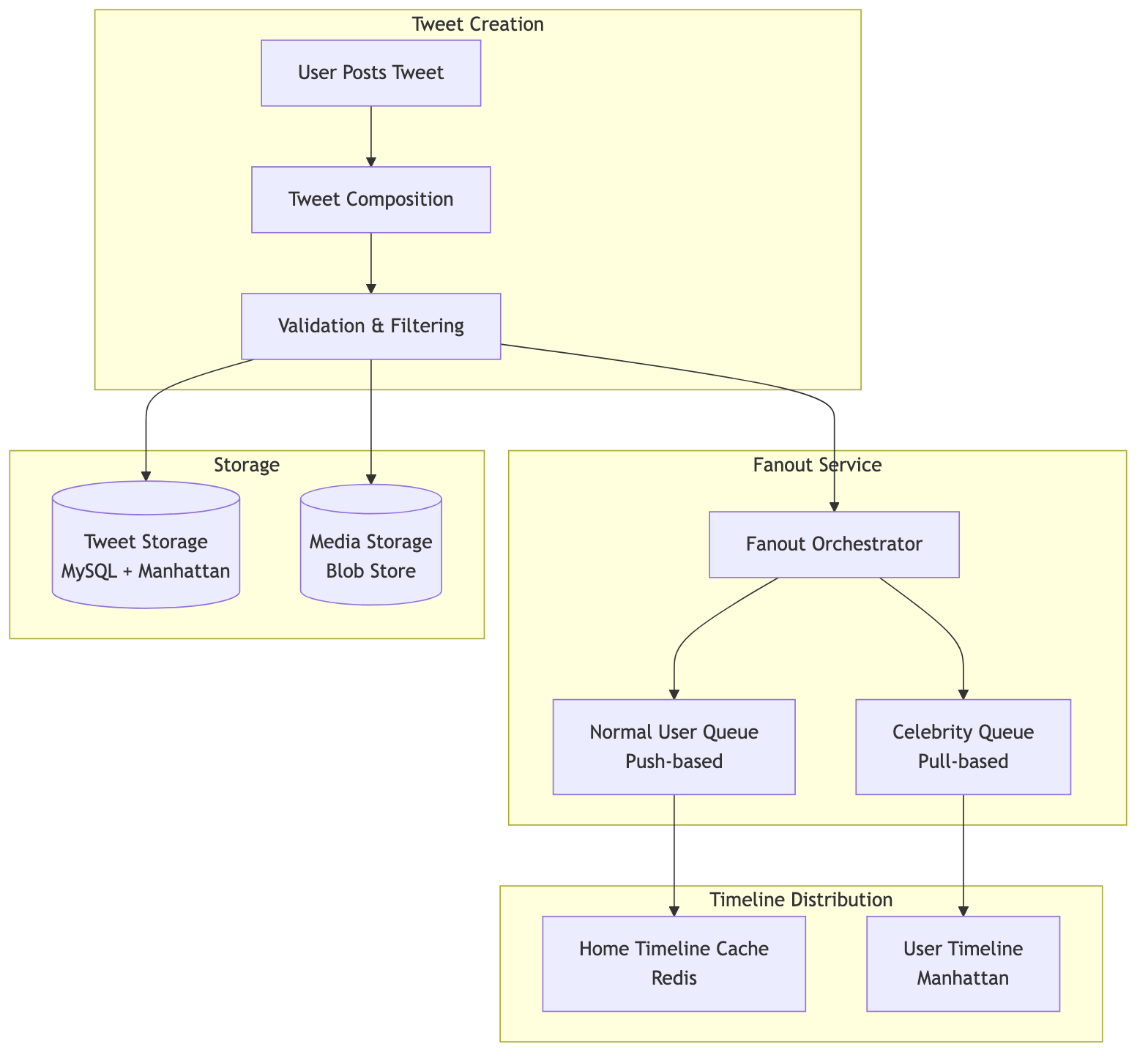

1. Tweet Distribution System

Twitter's fanout architecture handles tweet delivery to millions of followers.

Fanout Strategy:

Push Fanout (Normal Users): Tweets pushed to followers' timelines immediately
Pull Fanout (Celebrities): Tweets fetched on-demand due to massive follower counts
Hybrid Model: Combines both strategies based on follower count threshold (~1M followers)

Key Features:

Write operations: ~500,000 tweets/second peak
Read operations: ~600,000 timeline requests/second
Fanout to millions of followers in <5 seconds
Content filtering and safety checks

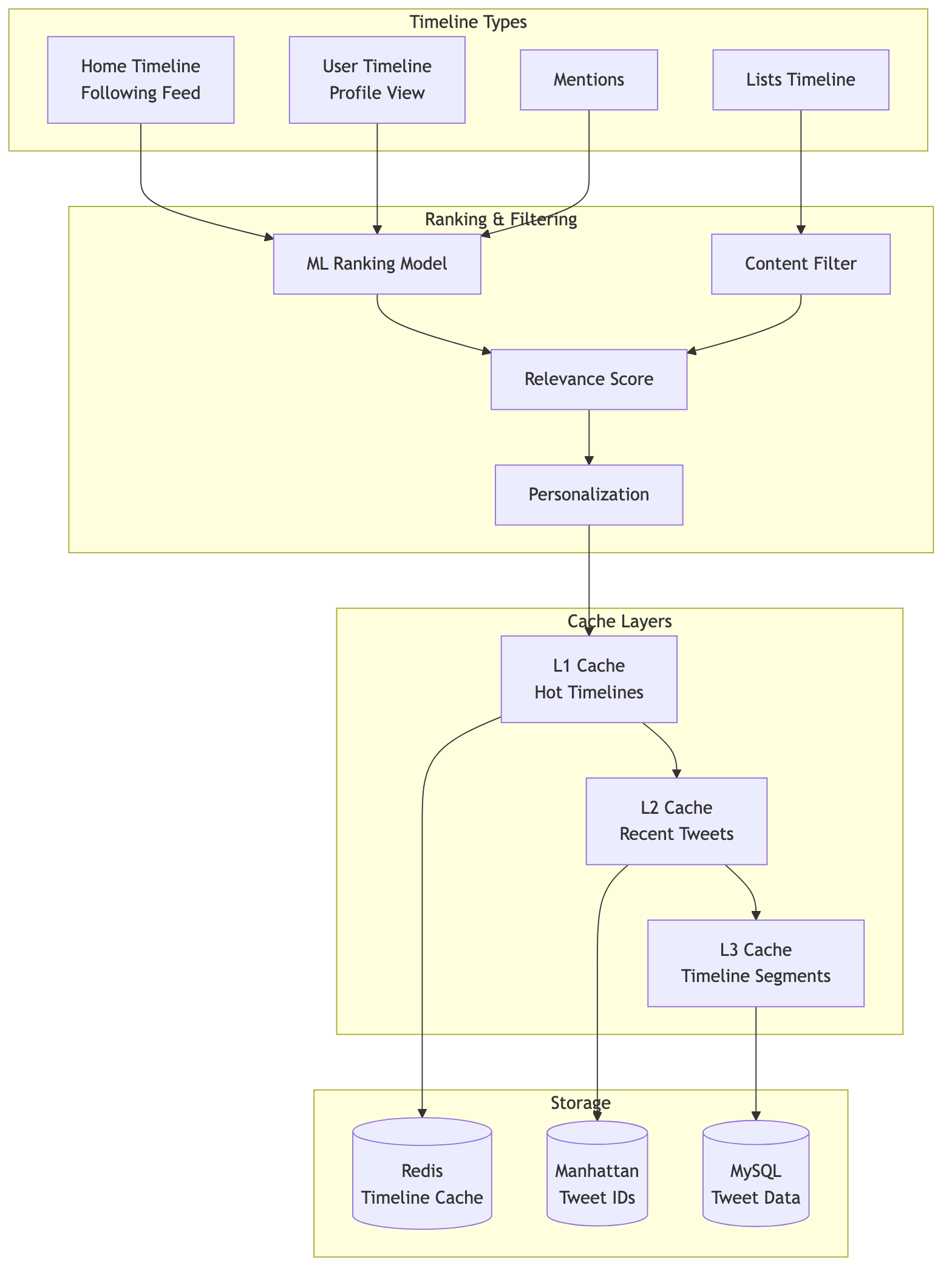

2. Timeline Service Architecture

Timeline Components:

Home Timeline: Chronological + algorithmic ranking
User Timeline: User's own tweets
Mentions Timeline: Tweets mentioning the user
List Timelines: Curated user lists

Ranking Signals:

Tweet recency and engagement
User relationship strength
Content type preferences
Spam and quality scores

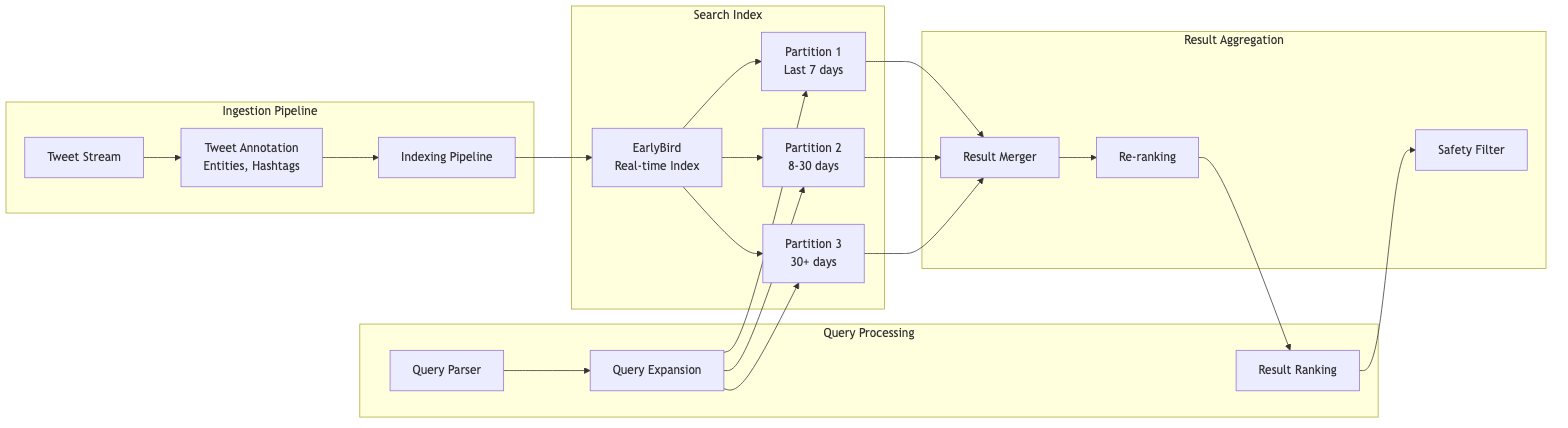

3. Real-Time Search Architecture

Search Components:

EarlyBird: Custom real-time search engine
Inverted Index: Tweet content, hashtags, mentions
Time-based Partitioning: Recent tweets prioritized
Distributed Query Execution: Parallel search across partitions

Search Features:

Real-time indexing (<10 seconds)
Full-text search with operators
Trending topics detection
Spam and quality filtering

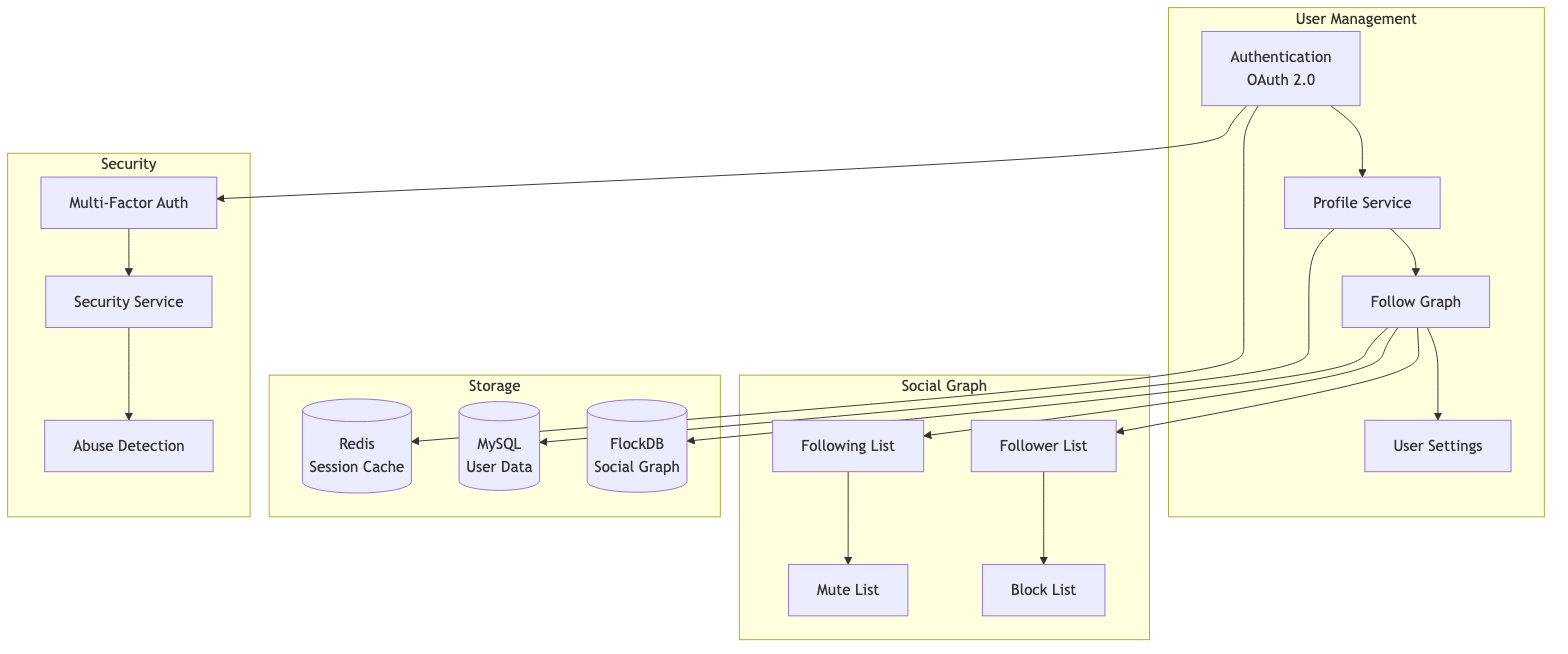

4. User Service

Key Features:

OAuth 2.0 authentication
Social graph storage (FlockDB)
Follow/unfollow operations
User verification system
Privacy and security settings

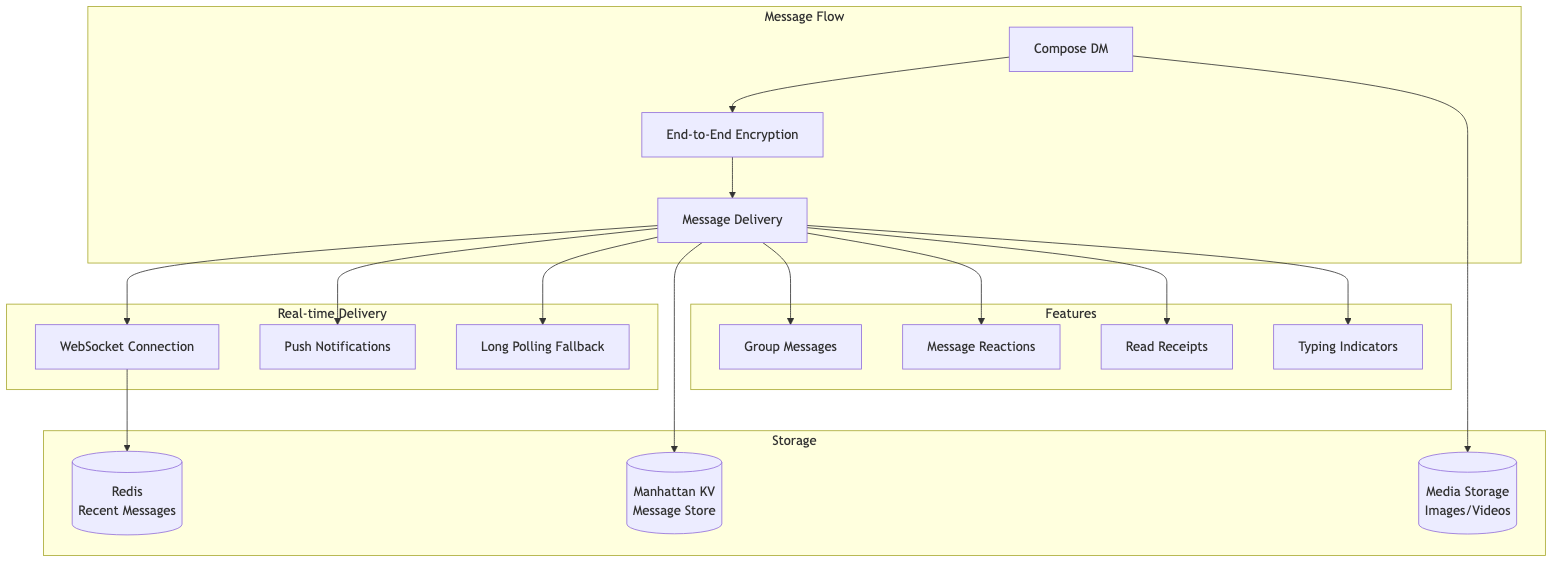

5. Direct Message Service

DM Features:

End-to-end encryption option
Real-time message delivery
Group conversations
Media sharing (images, videos, GIFs)
Read receipts and typing indicators

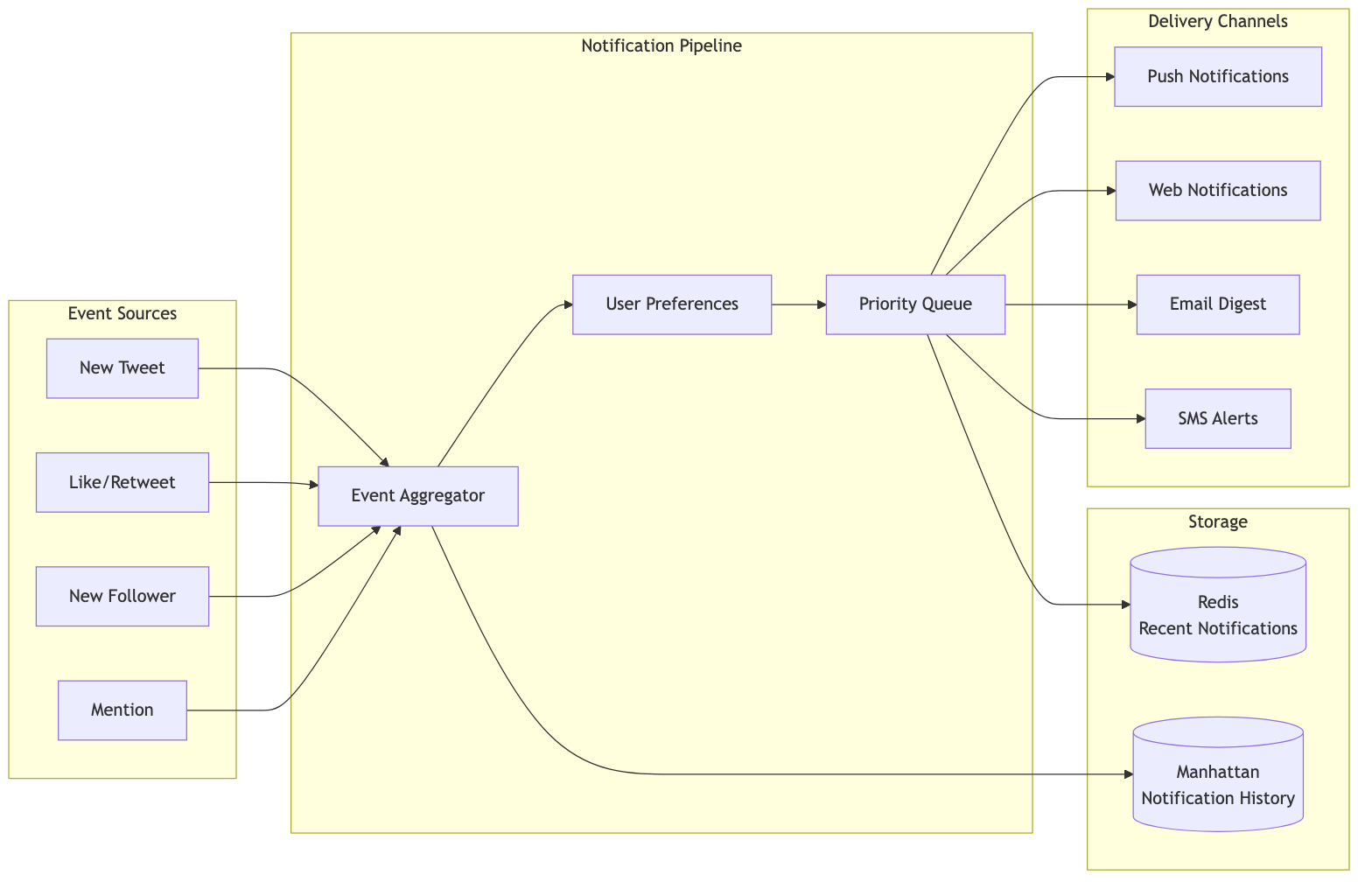

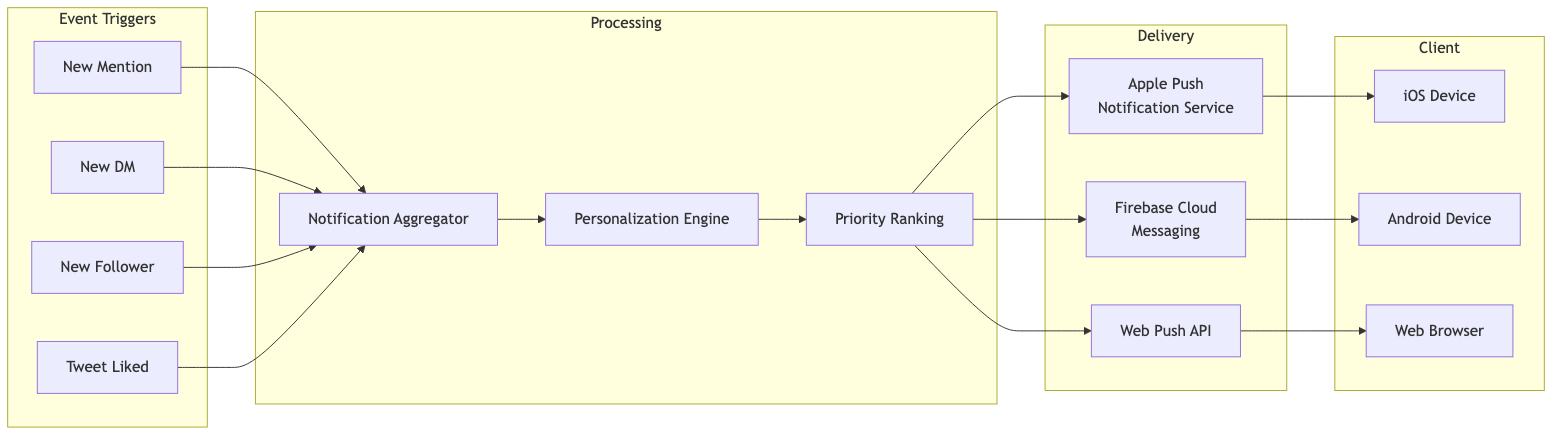

6. Notification Service

Notification Types:

Engagement notifications (likes, retweets, replies)
Social notifications (new followers, mentions)
Direct message notifications
Trending topic alerts
Personalized recommendations

Data Storage Architecture

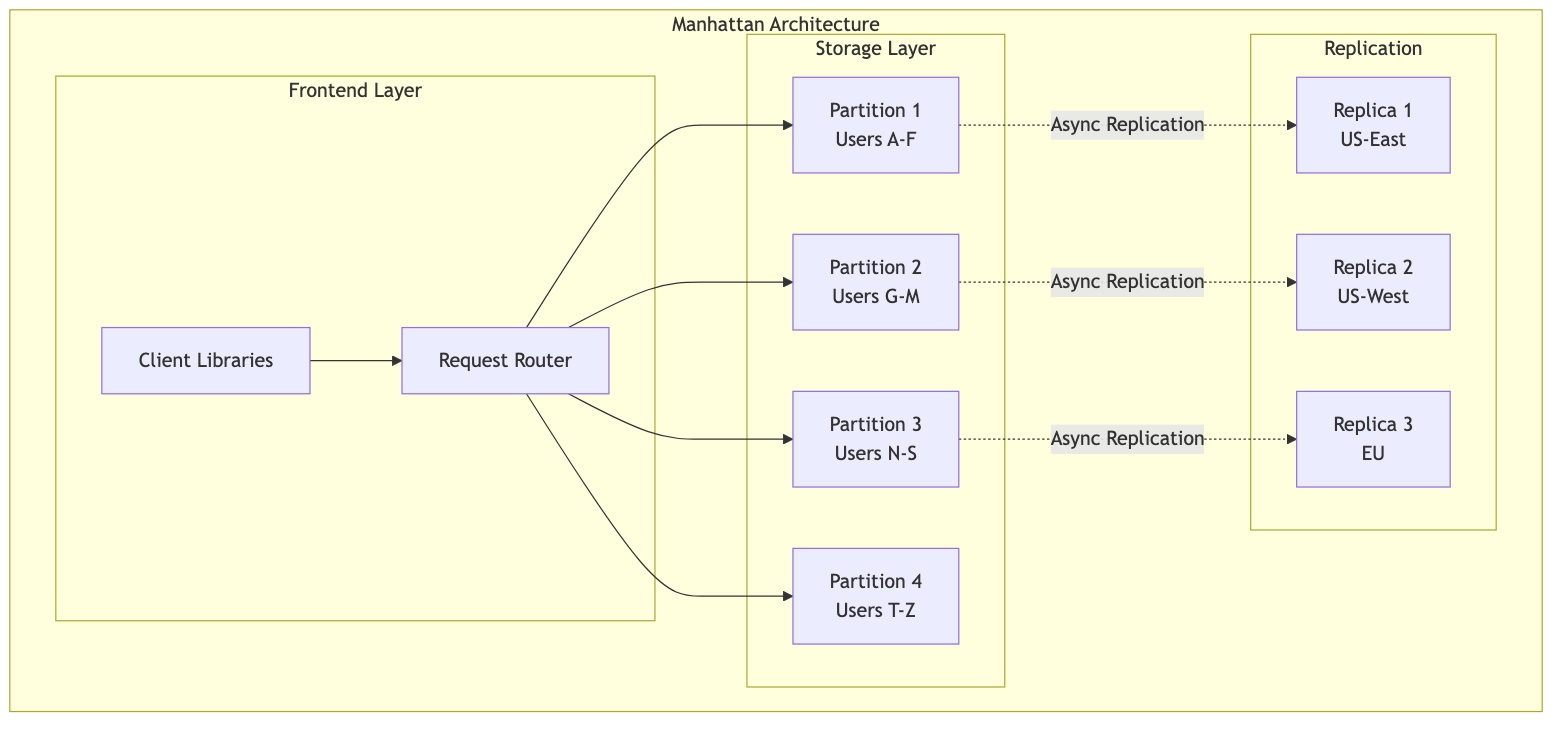

1. Manhattan (Distributed Key-Value Store)

Manhattan Use Cases:

Tweet storage (tweet ID → tweet data)
Direct messages
User timelines
Low-latency key-value operations

Features:

Geo-replicated across data centers
Strong consistency within datacenter
Eventual consistency across regions
Billions of operations per second

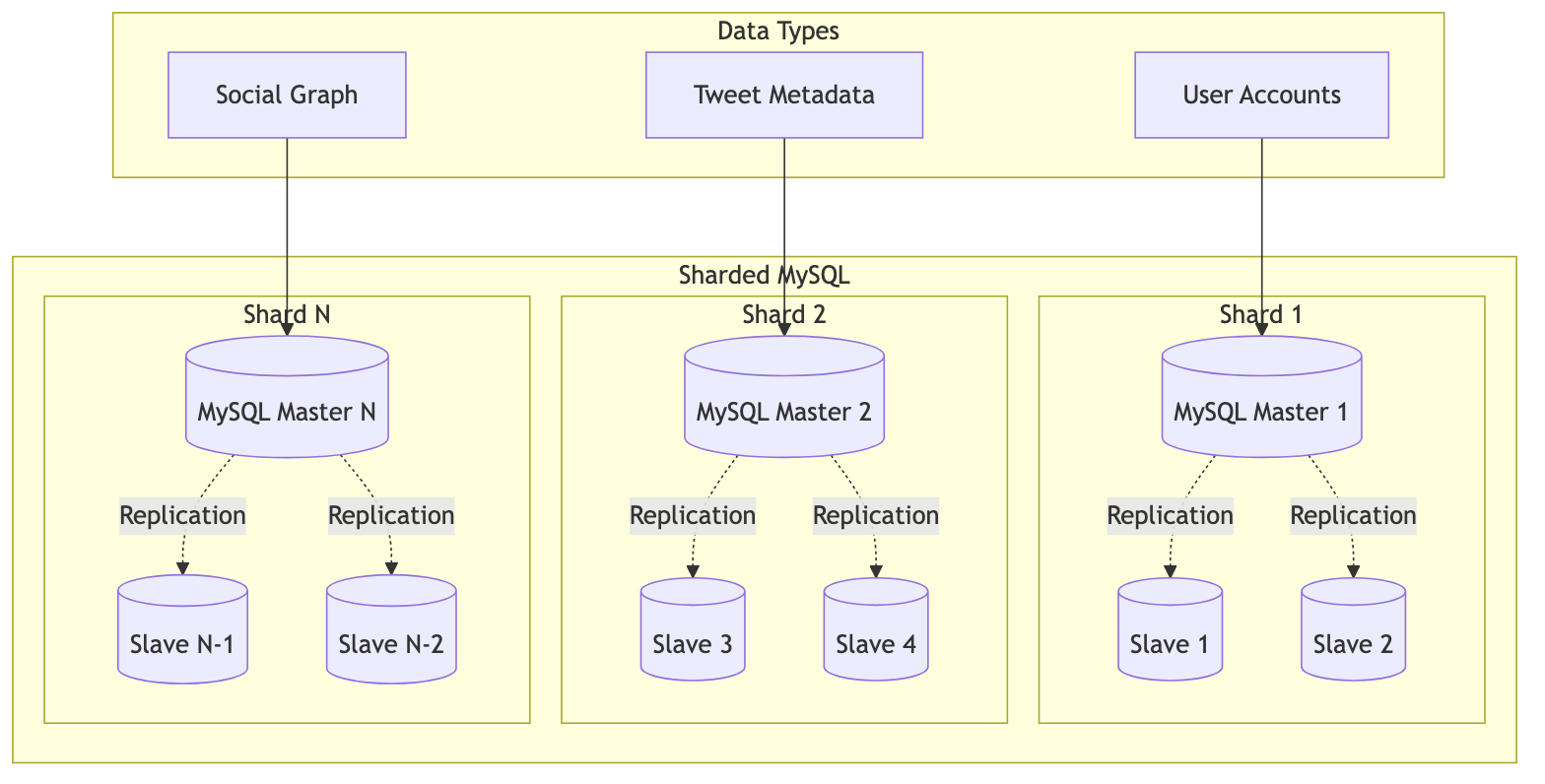

2. MySQL Clusters

MySQL Usage:

User account data
Tweet metadata
Relationships and social graph
Application configuration

Sharding Strategy:

User ID-based sharding
Horizontal scaling to 1000+ shards
Read replicas for query distribution

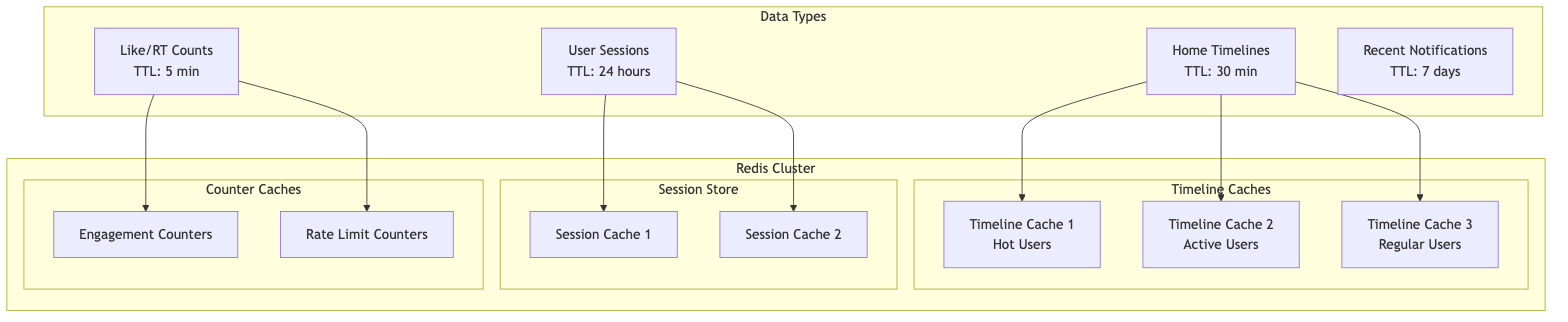

3. Redis Cache Architecture

Redis Use Cases:

Timeline caching (home, user, mentions)
Session storage
Real-time counters (likes, retweets)
Rate limiting counters
Recent notification cache

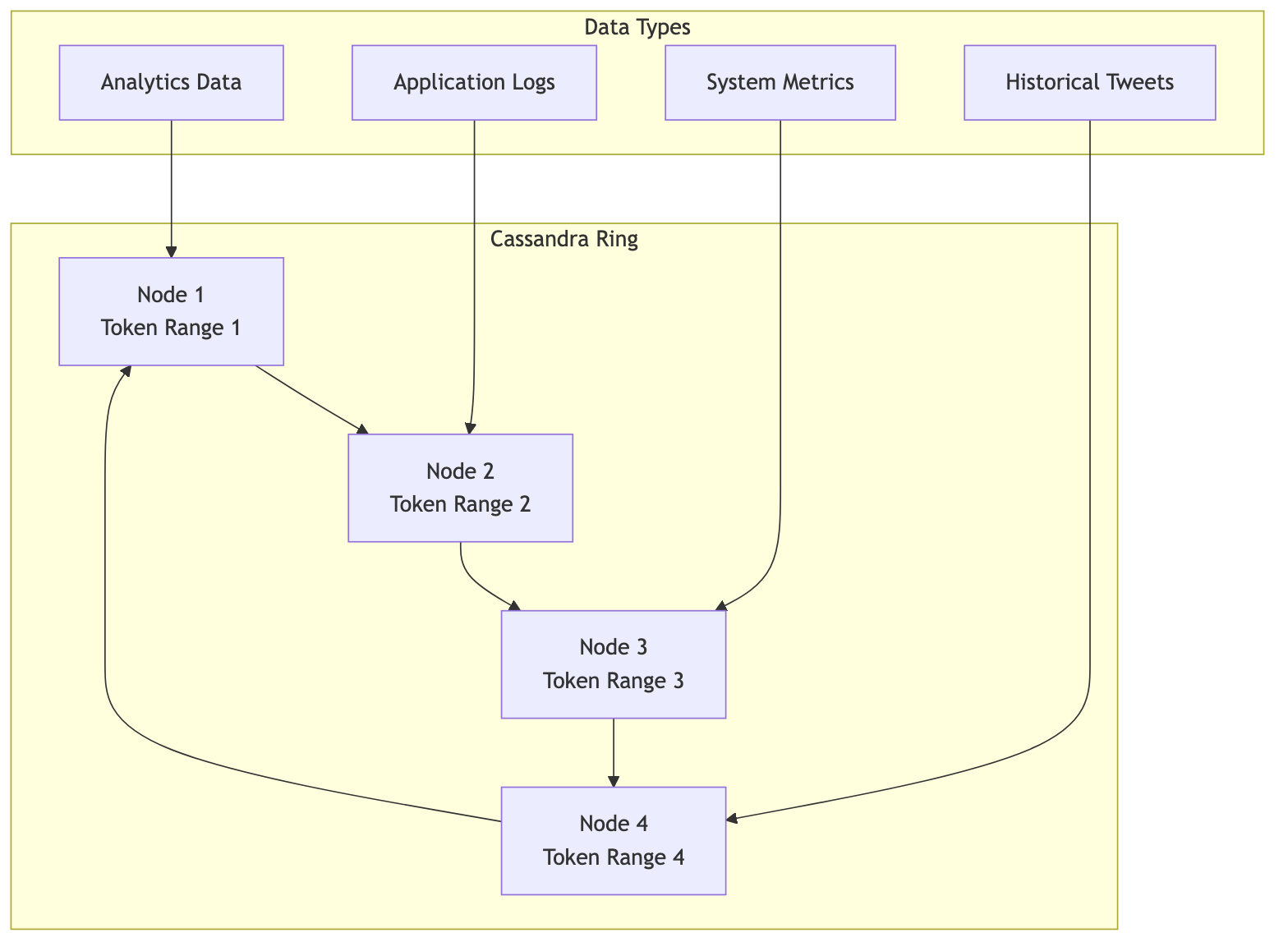

4. Cassandra

Cassandra Use Cases:

Analytics and metrics
Application logs
Historical tweet archives
Time-series data

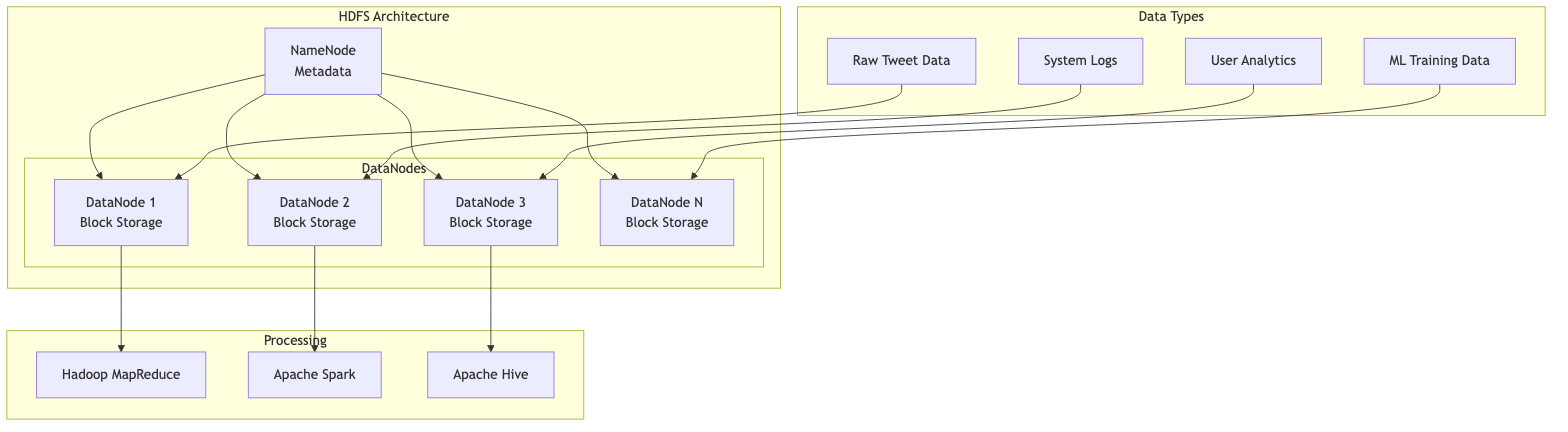

5. Hadoop HDFS

HDFS Use Cases:

Data warehousing
Batch analytics processing
Machine learning training data
Long-term data archival

Scalability & Performance

1. Tweet Write Path

Write Optimization:

Asynchronous fanout processing
Batch timeline updates
Parallel writes to multiple storage systems
Write-through cache strategy

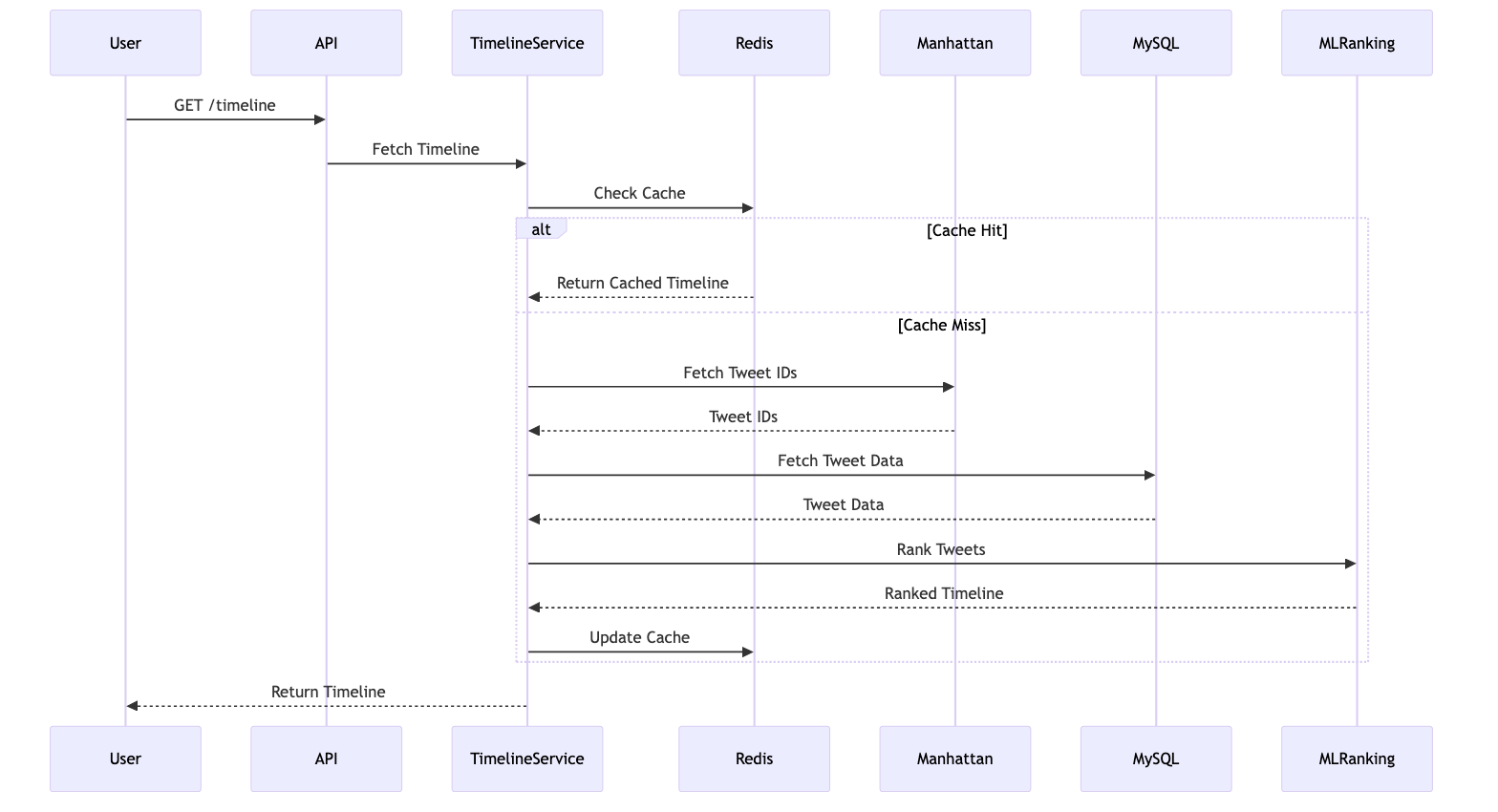

2. Timeline Read Path

Read Optimization:

Multi-level caching strategy
Prefetching popular content
Partial timeline rendering
Lazy loading of media

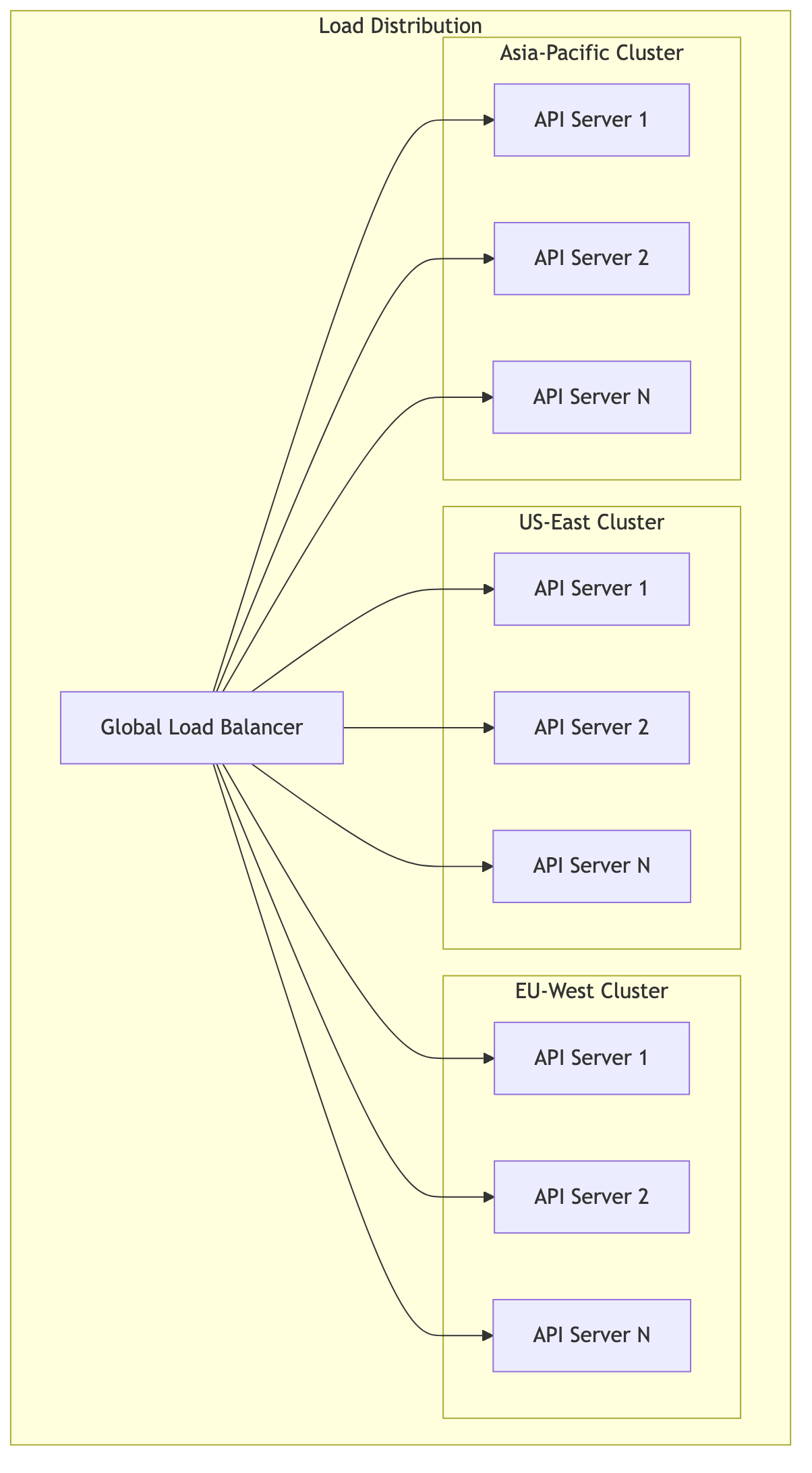

3. Horizontal Scaling

Scaling Strategies:

Geo-distributed data centers
Auto-scaling based on traffic patterns
Service mesh for inter-service communication
Database sharding by user ID

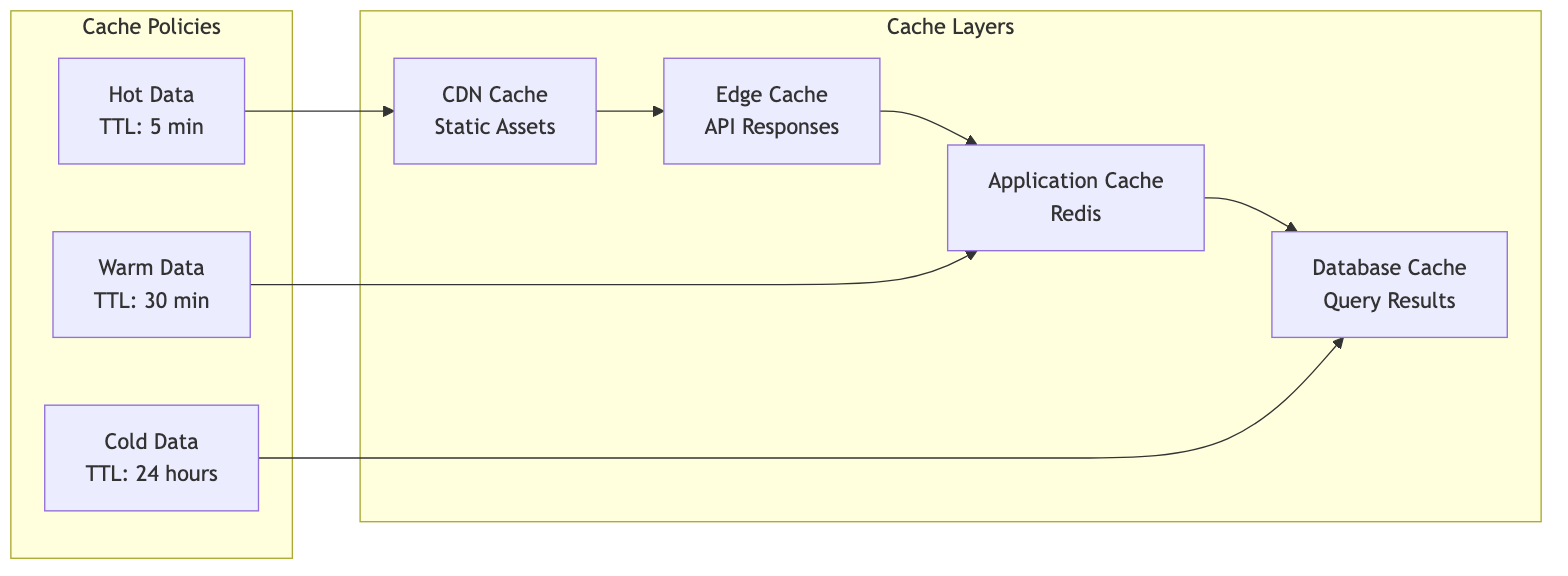

4. Caching Strategy

Cache Hierarchy:

L1: CDN (static assets, profile images)
L2: Edge cache (API responses)
L3: Redis (timelines, sessions)
L4: Database query cache

Real-Time Features

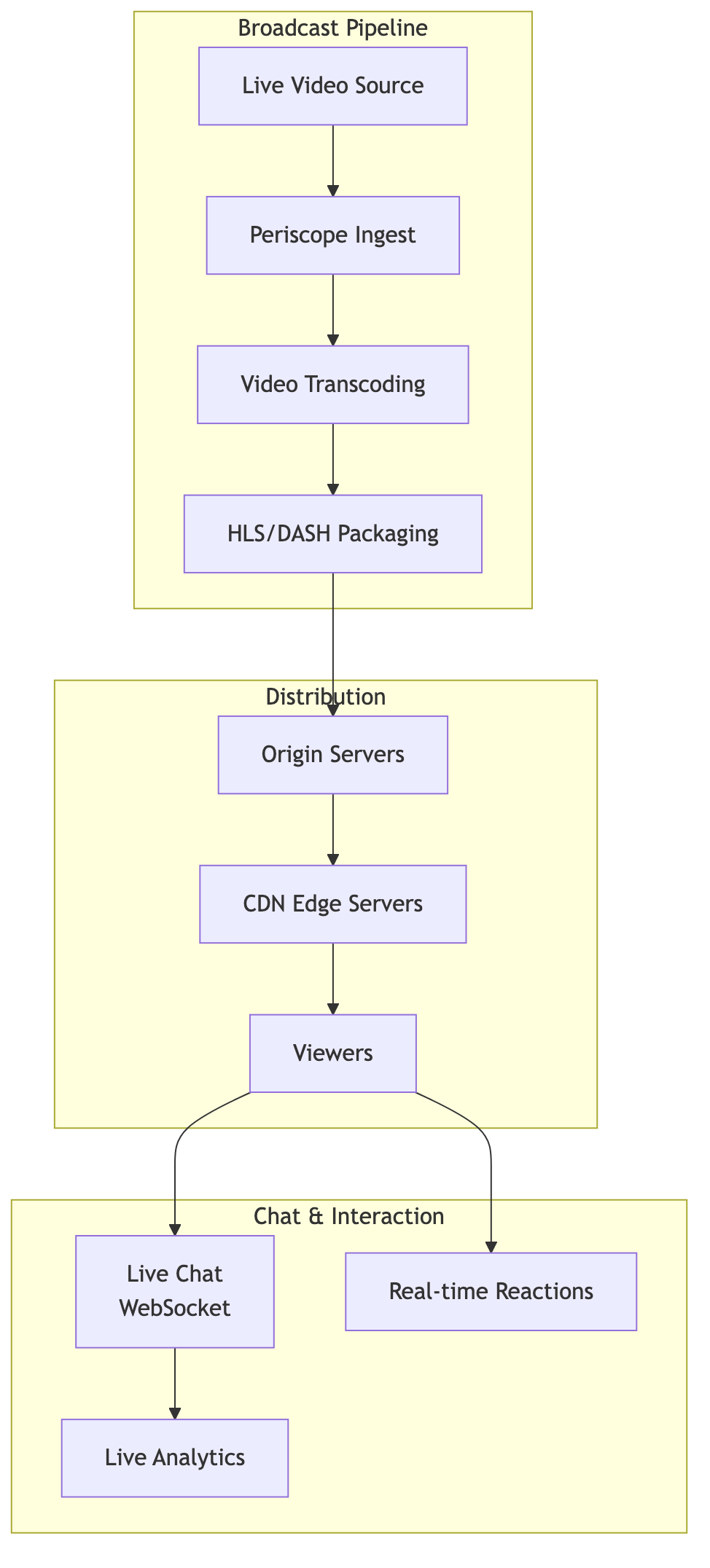

1. Live Streaming Architecture

Live Features:

Periscope integration
Real-time chat
Live reactions and engagement
Low-latency streaming (~3-5 seconds)

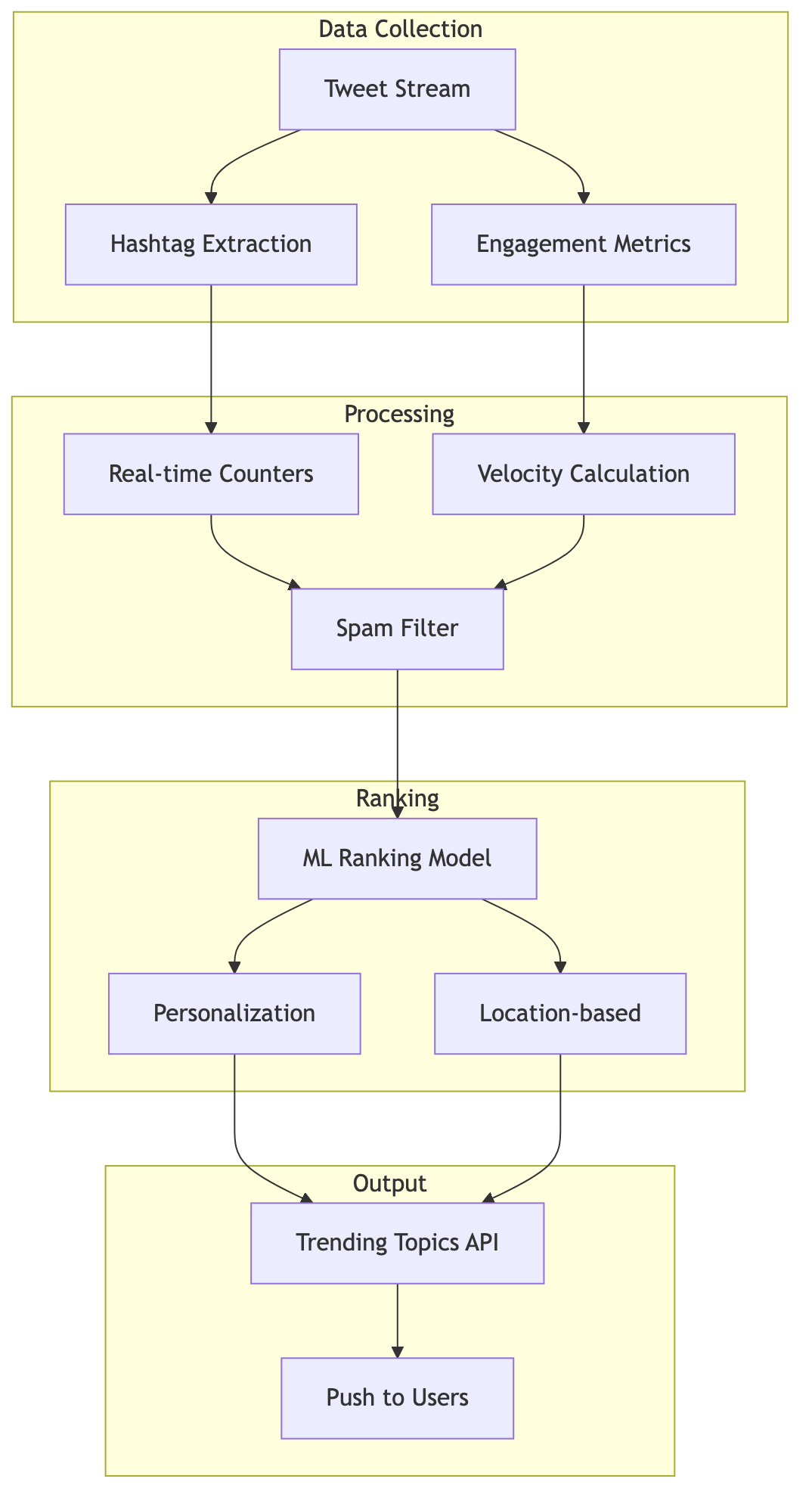

Trending Algorithm:

Real-time tweet velocity tracking
Engagement-based scoring
Spam and abuse filtering
Geographic personalization
Recency weighting

3. Real-Time Recommendations

Recommendation Types:

Who to follow suggestions
Tweet recommendations
Topic suggestions
Trending content

Machine Learning Infrastructure

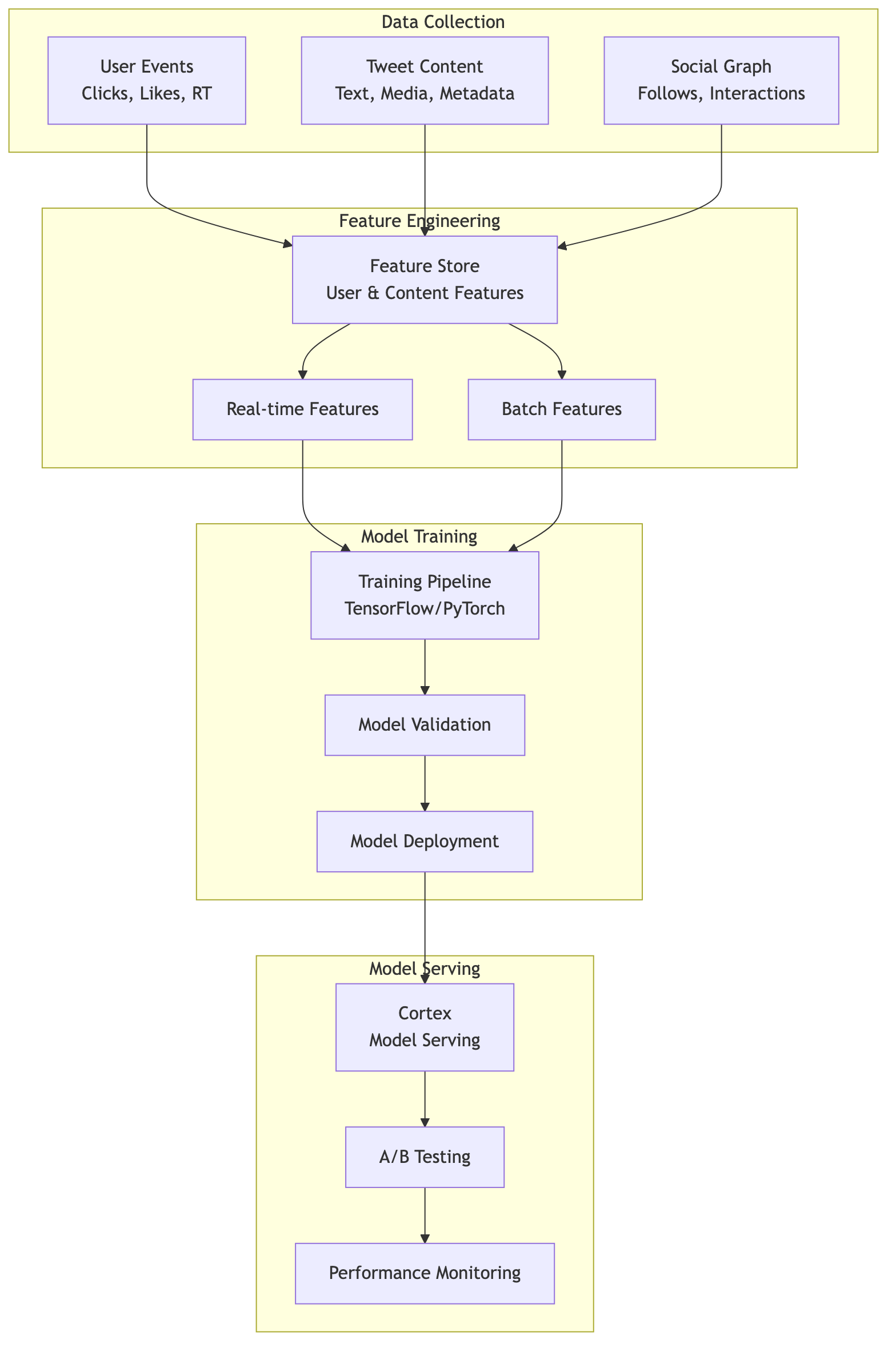

1. ML Pipeline

ML Use Cases:

Timeline ranking
Content recommendations
Spam detection
Image/video classification
Trend prediction
Ad targeting

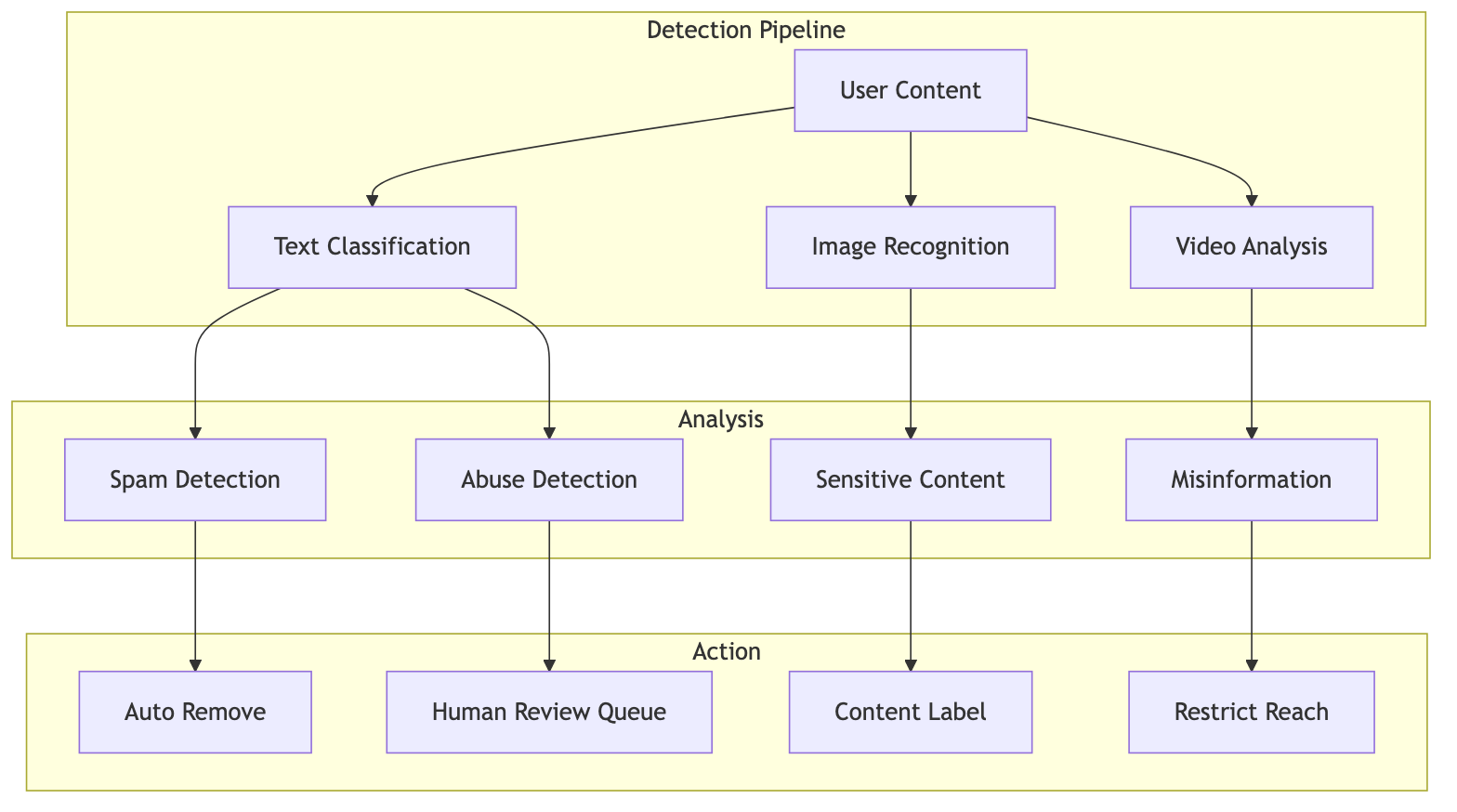

2. Content Safety & Moderation

Safety Features:

Automated spam detection
Abusive content filtering
Sensitive media detection
Misinformation labeling
Human-in-the-loop review

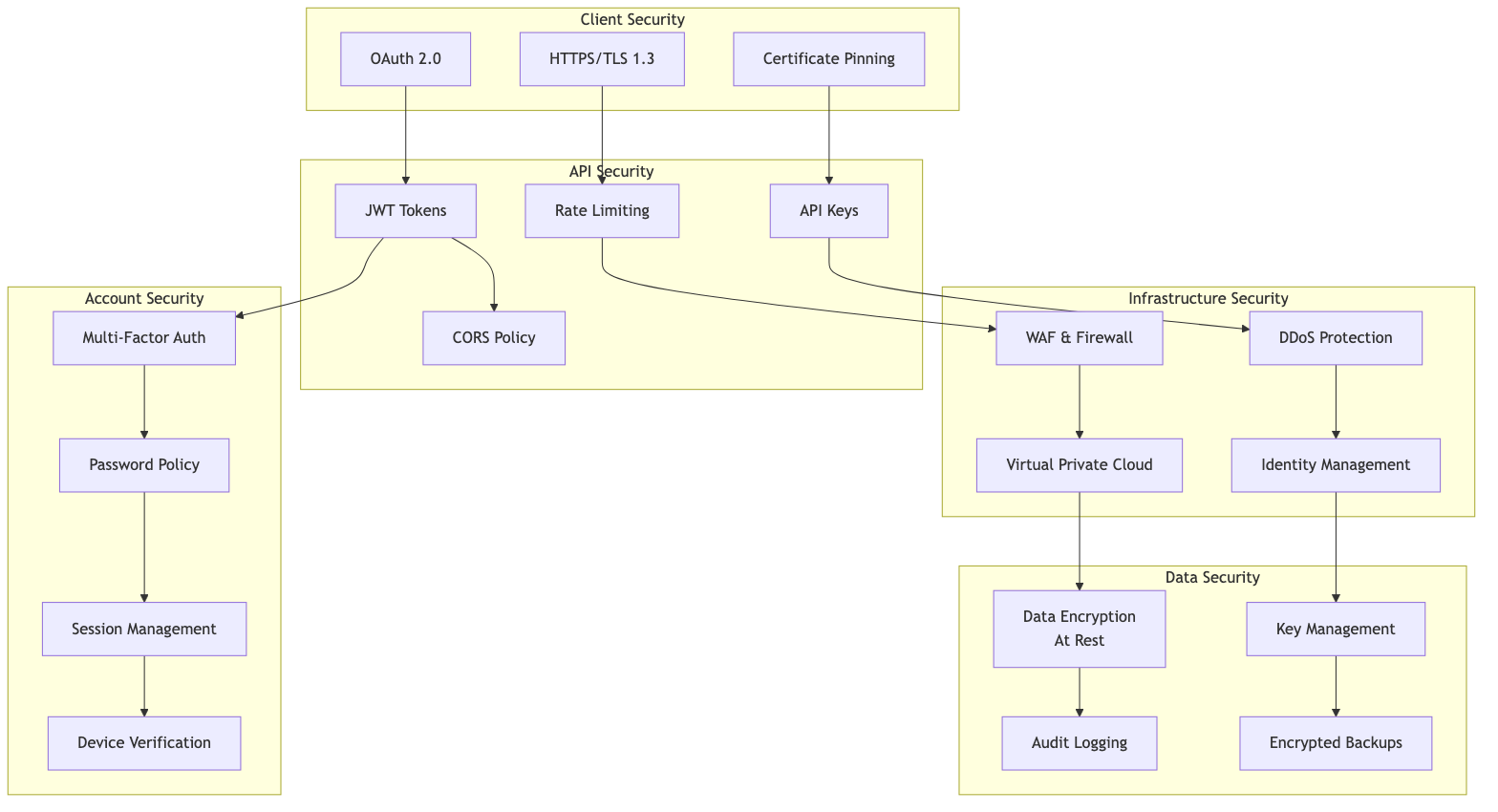

Security Architecture

Security Measures:

Authentication: OAuth 2.0, JWT tokens
Encryption: TLS 1.3, AES-256 at rest
DDoS Protection: Multi-layered defense
API Security: Rate limiting, key rotation
Account Security: MFA, login verification

Monitoring & Observability

Monitoring Metrics:

System Metrics: CPU, memory, disk, network
Application Metrics: Request latency, error rates
Business Metrics: Tweet volume, user engagement
Custom Metrics: Timeline generation time, fanout latency

Alerting:

Critical Alerts: Service outages, data loss
Warning Alerts: High latency, resource saturation
Anomaly Alerts: Unusual traffic patterns
SLA Monitoring: 99.9% uptime target

Infrastructure & DevOps

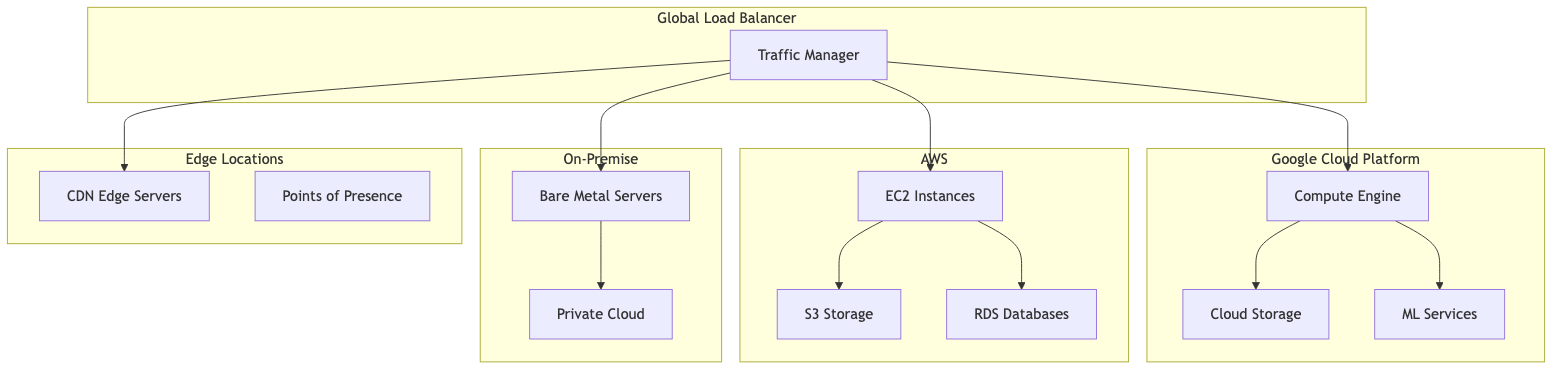

1. Multi-Cloud Architecture

Infrastructure Strategy:

Multi-cloud approach (AWS, GCP)
Hybrid cloud with on-premise data centers
Global CDN presence
Cost optimization across providers

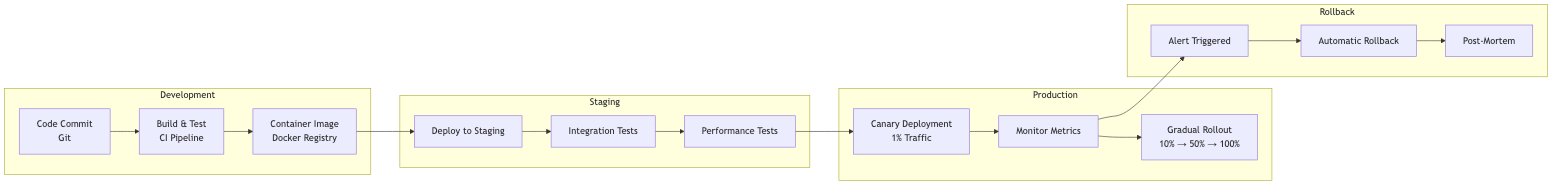

2. Deployment Pipeline

Deployment Strategy:

Continuous Integration/Continuous Deployment (CI/CD)
Canary deployments for risk mitigation
Blue-green deployments for zero downtime
Automated rollback on failures
Feature flags for controlled rollouts

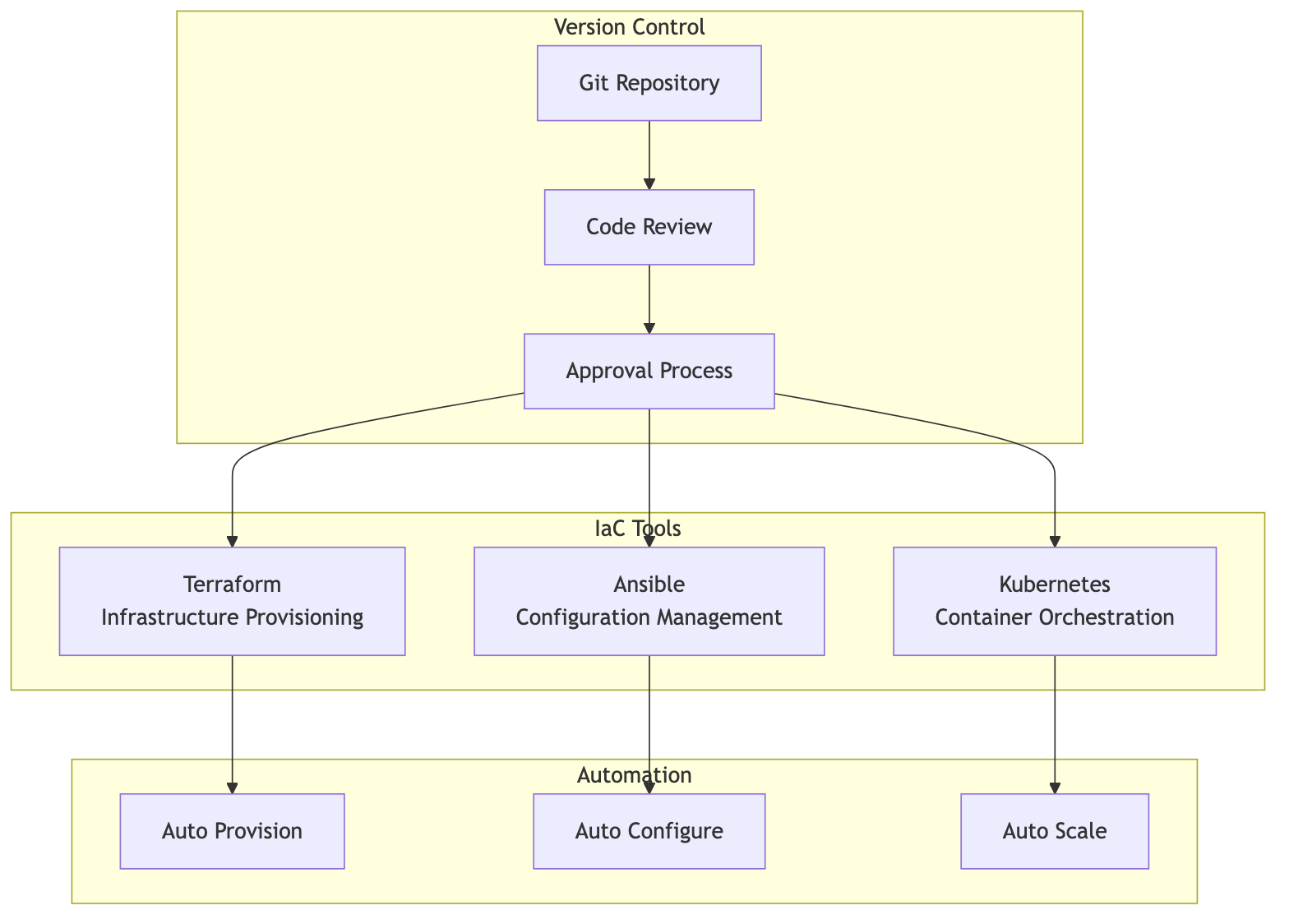

3. Infrastructure as Code

IaC Components:

Terraform for cloud resource provisioning
Ansible for server configuration
Kubernetes for container orchestration
GitOps workflow for changes

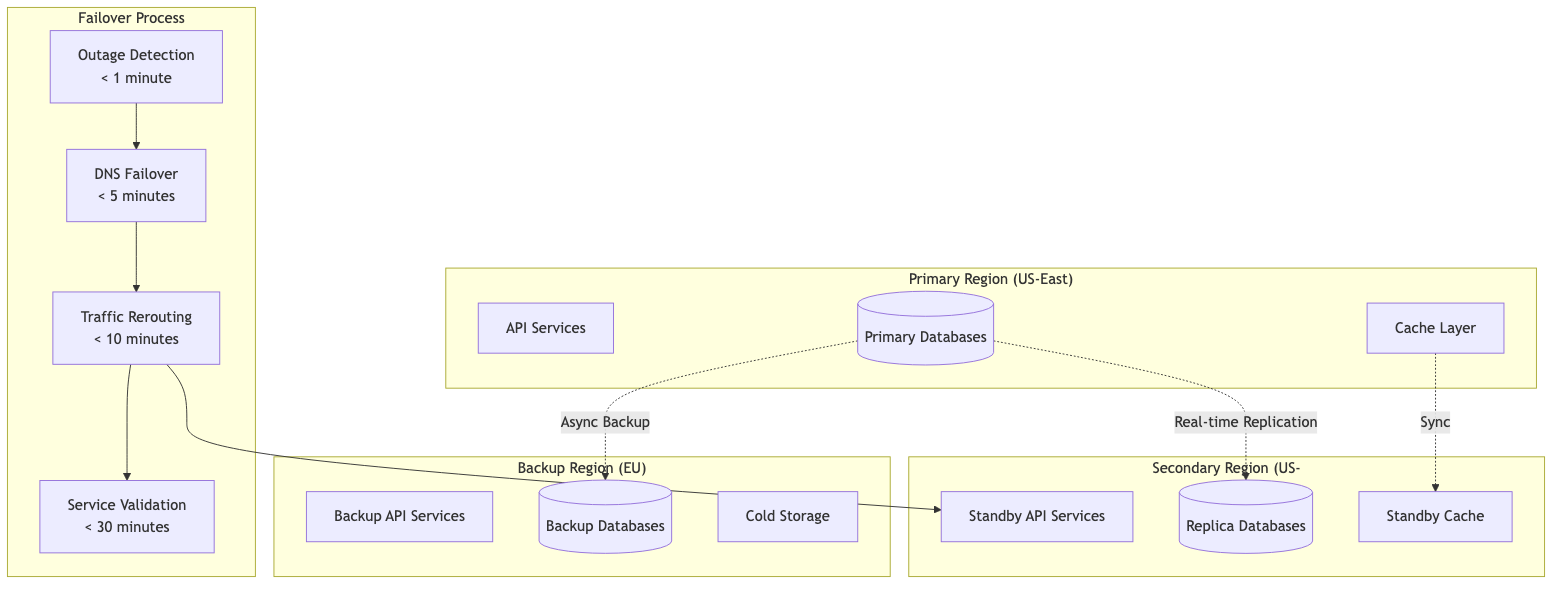

4. Disaster Recovery

DR Metrics:

RTO (Recovery Time Objective): < 1 hour
RPO (Recovery Point Objective): < 5 minutes
Data Backup: Multiple geographic locations
Automated Failover: Cross-region redundancy

Performance Optimization

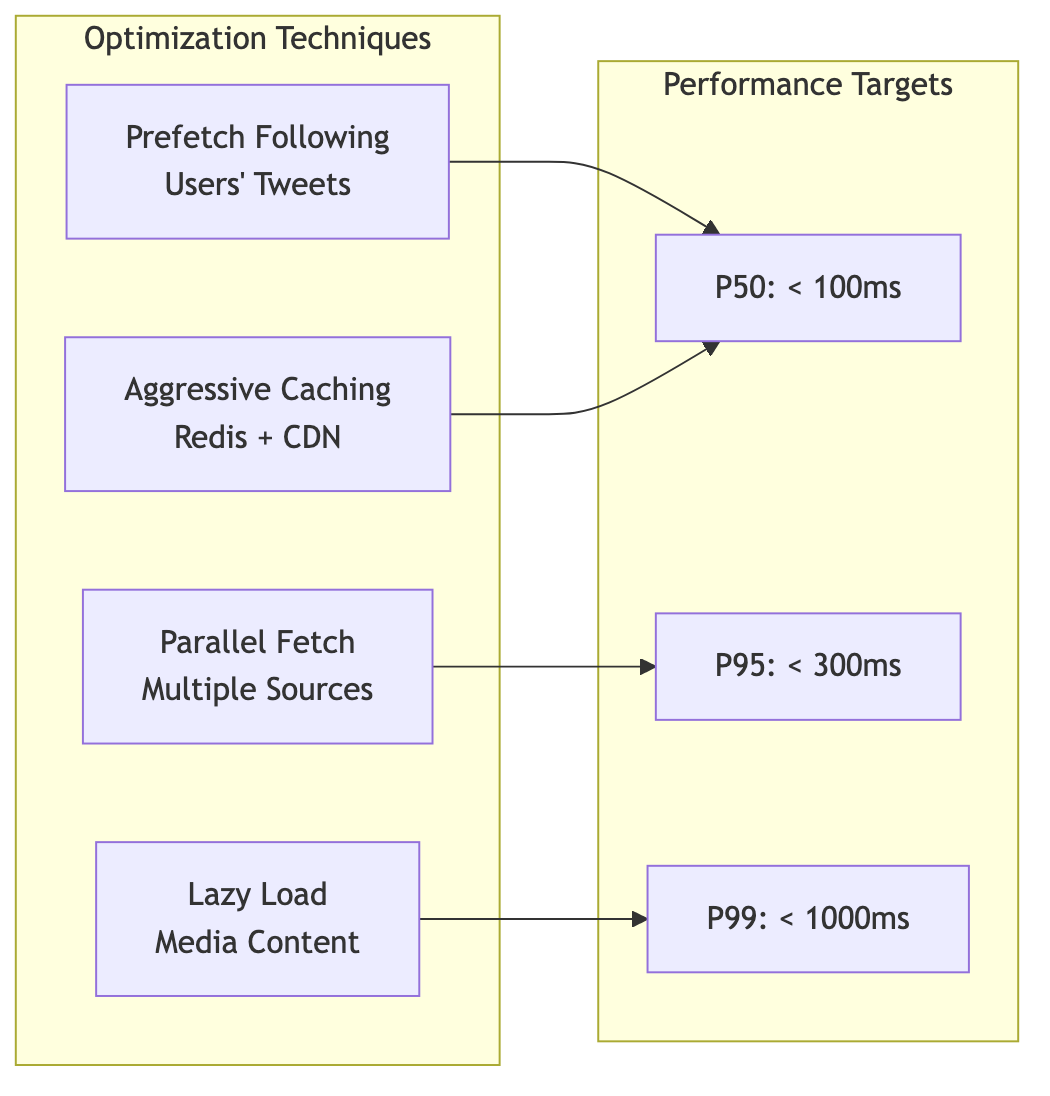

1. Timeline Generation Performance

Performance Techniques:

Predictive prefetching based on user behavior
Parallel data fetching from multiple sources
Edge caching for frequently accessed timelines
Progressive rendering for faster perceived load time

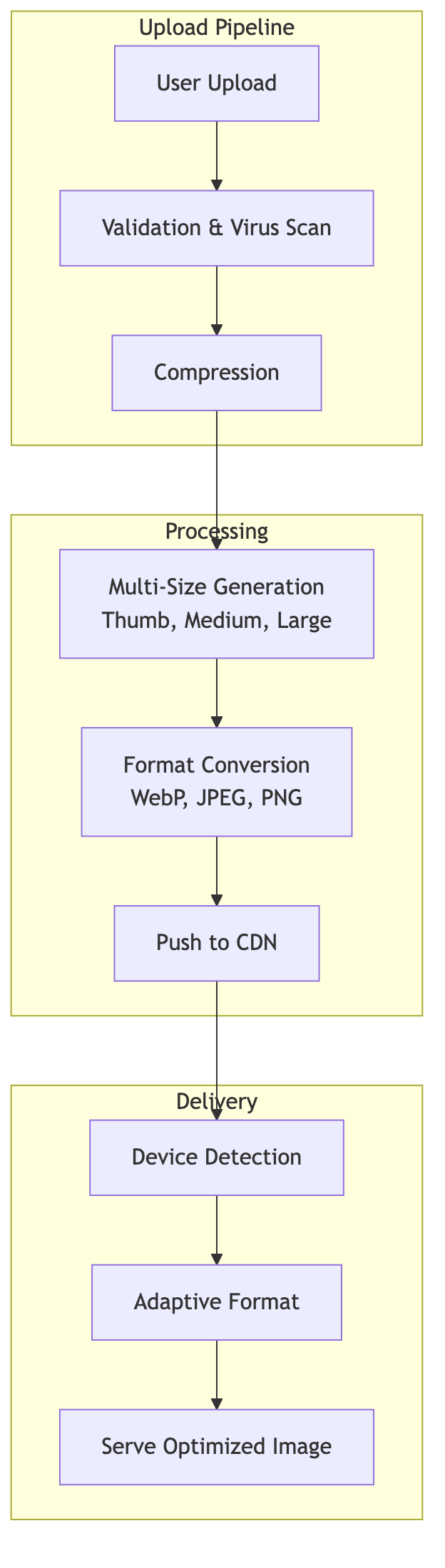

2. Media Optimization

Media Features:

Automatic image compression (up to 85% size reduction)
Multiple format support (WebP, AVIF, JPEG)
Responsive images based on device
Video transcoding for multiple bitrates
Lazy loading for off-screen media

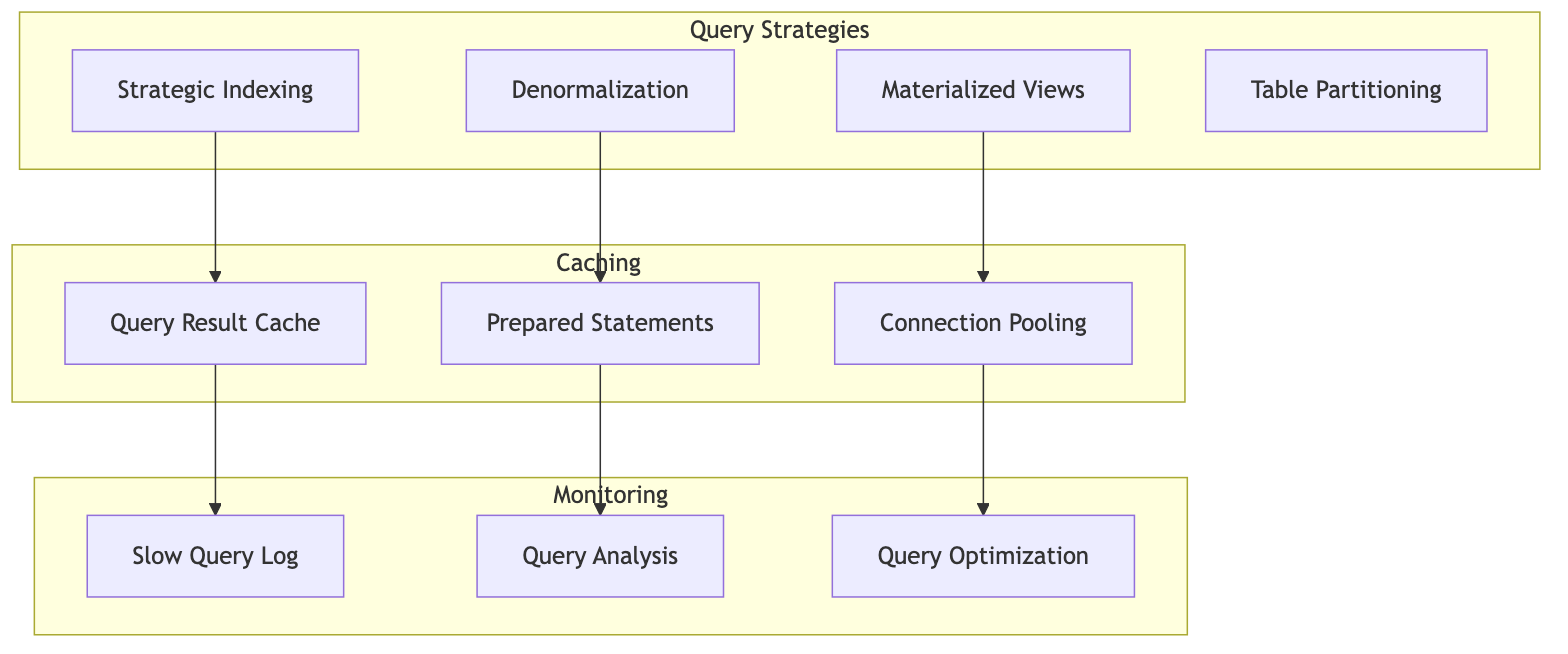

3. Database Query Optimization

Optimization Strategies:

Strategic indexing on high-traffic queries
Denormalization for read-heavy operations
Connection pooling to reduce overhead
Query result caching with TTL
Database sharding for horizontal scaling

Content Delivery

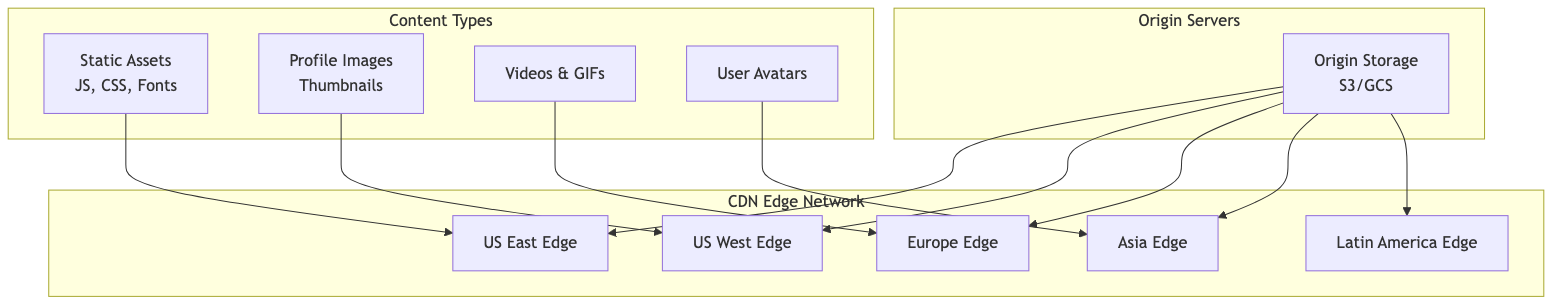

1. CDN Architecture

CDN Features:

Global edge network (100+ locations)
Smart routing based on geography
Cache hit ratio > 95%
Image optimization and transformation
Video streaming with adaptive bitrate

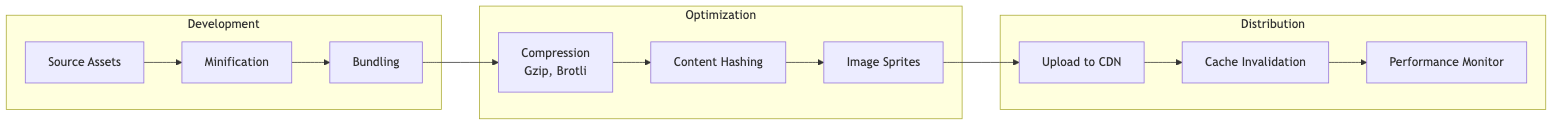

2. Asset Pipeline

Asset Optimization:

JavaScript/CSS minification
Module bundling and code splitting
Brotli compression for text assets
Image sprites for icons
Content hashing for cache busting

Analytics & Business Intelligence

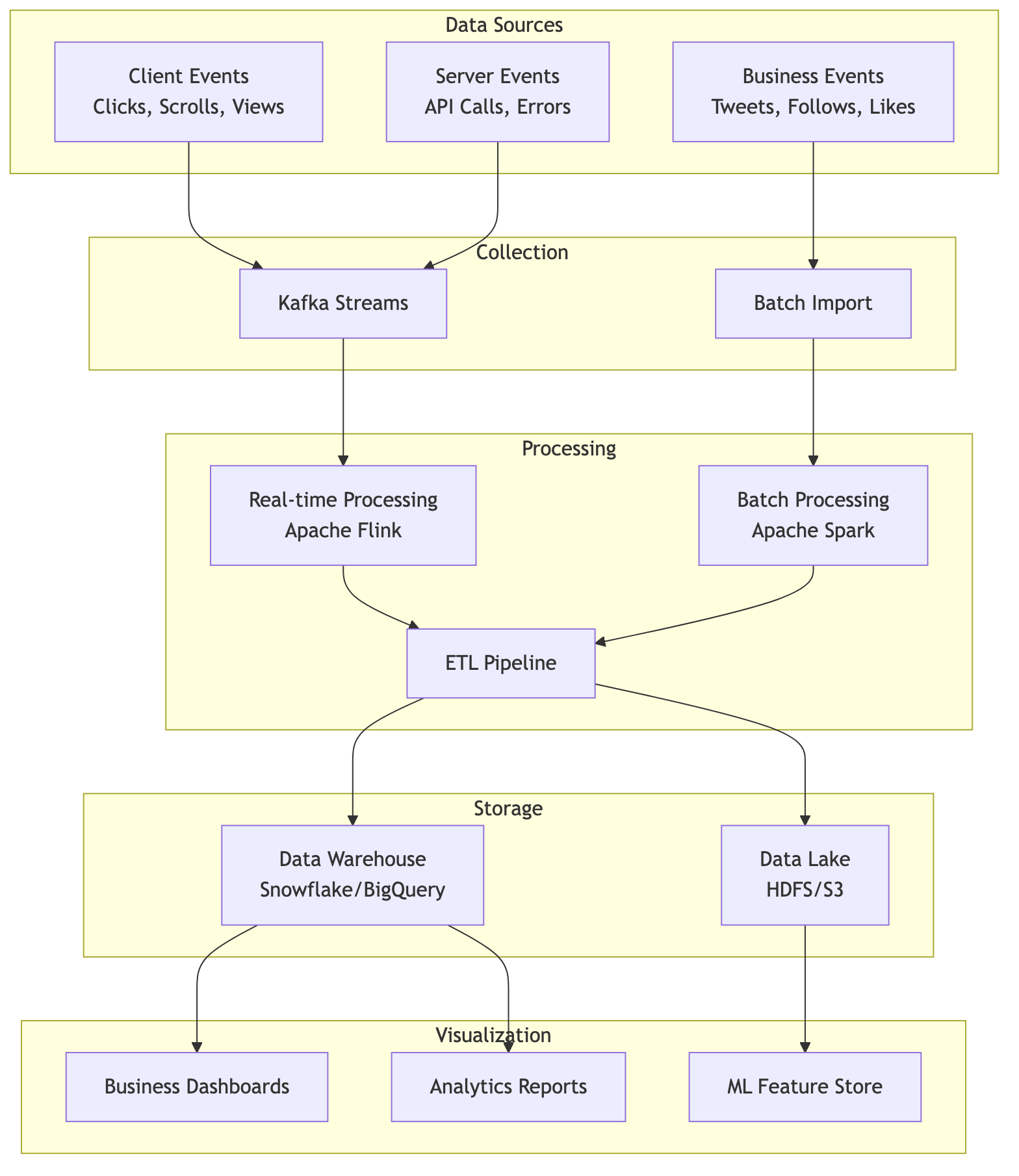

1. Analytics Pipeline

Analytics Use Cases:

User engagement metrics
Tweet performance analytics
Revenue and business metrics
A/B testing analysis
Fraud detection

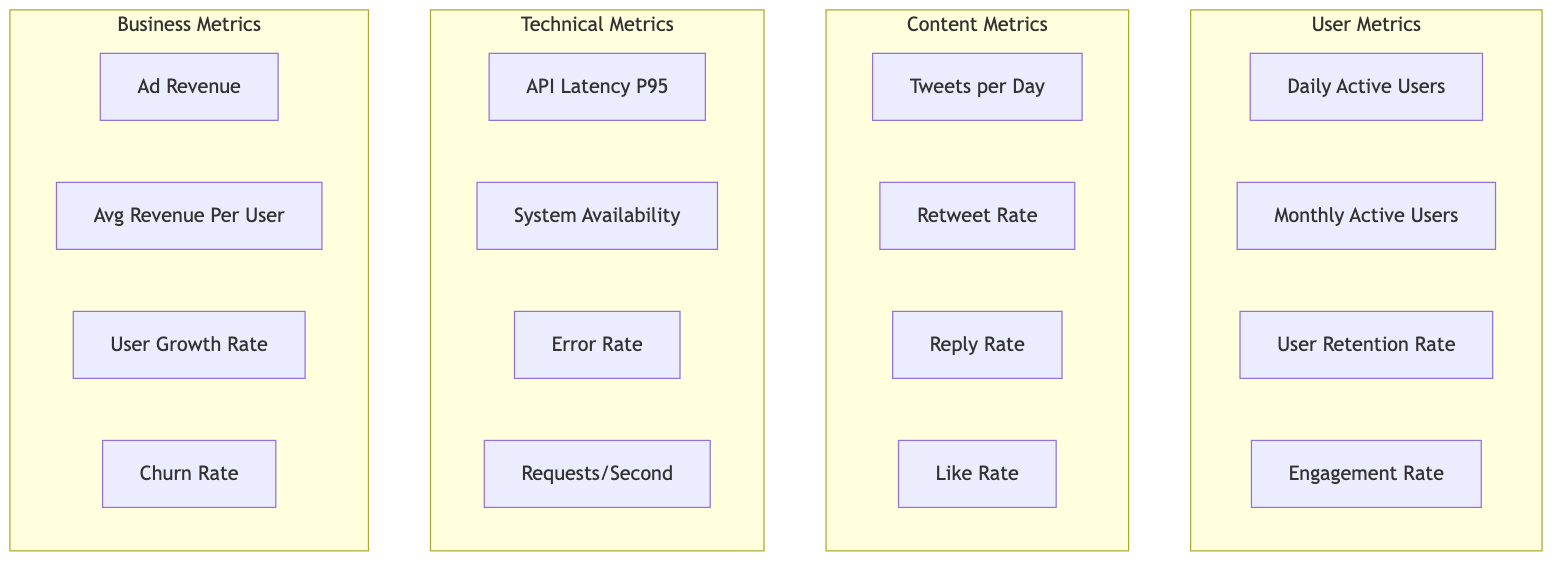

2. Key Performance Indicators

Target Metrics:

DAU: 250+ million daily active users
Tweets/Day: 500+ million tweets
API Latency: P95 < 200ms
Availability: 99.9% uptime SLA

Mobile Architecture

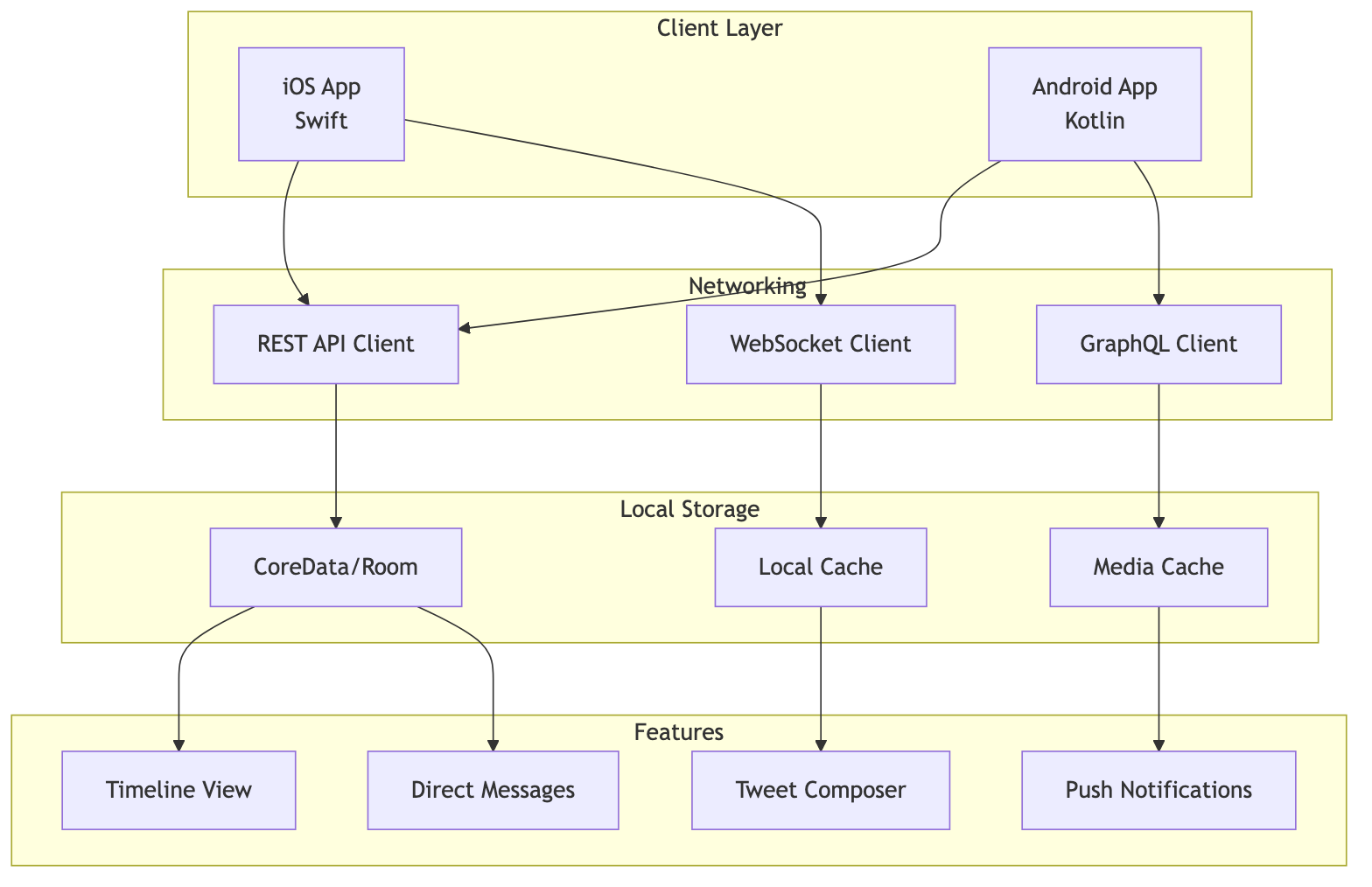

1. Mobile App Architecture

Mobile Features:

Offline timeline caching
Background tweet synchronization
Image/video compression before upload
Progressive image loading
Battery and data optimization

2. Push Notification System

Notification Strategy:

Intelligent notification batching
User preference-based filtering
Quiet hours and do-not-disturb
Rich notifications with media
Deep linking to relevant content

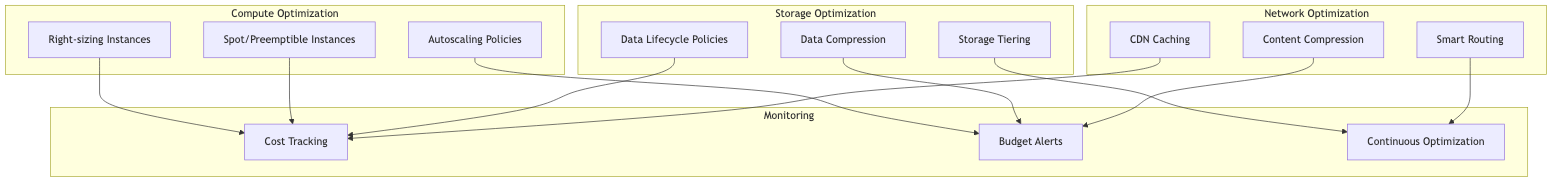

Cost Optimization

Optimization Strategies

Cost Reduction Tactics:

Reserved instances for stable workloads (30-50% savings)
Spot instances for batch processing (up to 90% savings)
Aggressive caching to reduce compute load
Data compression and deduplication
Multi-cloud strategy for competitive pricing

API Architecture

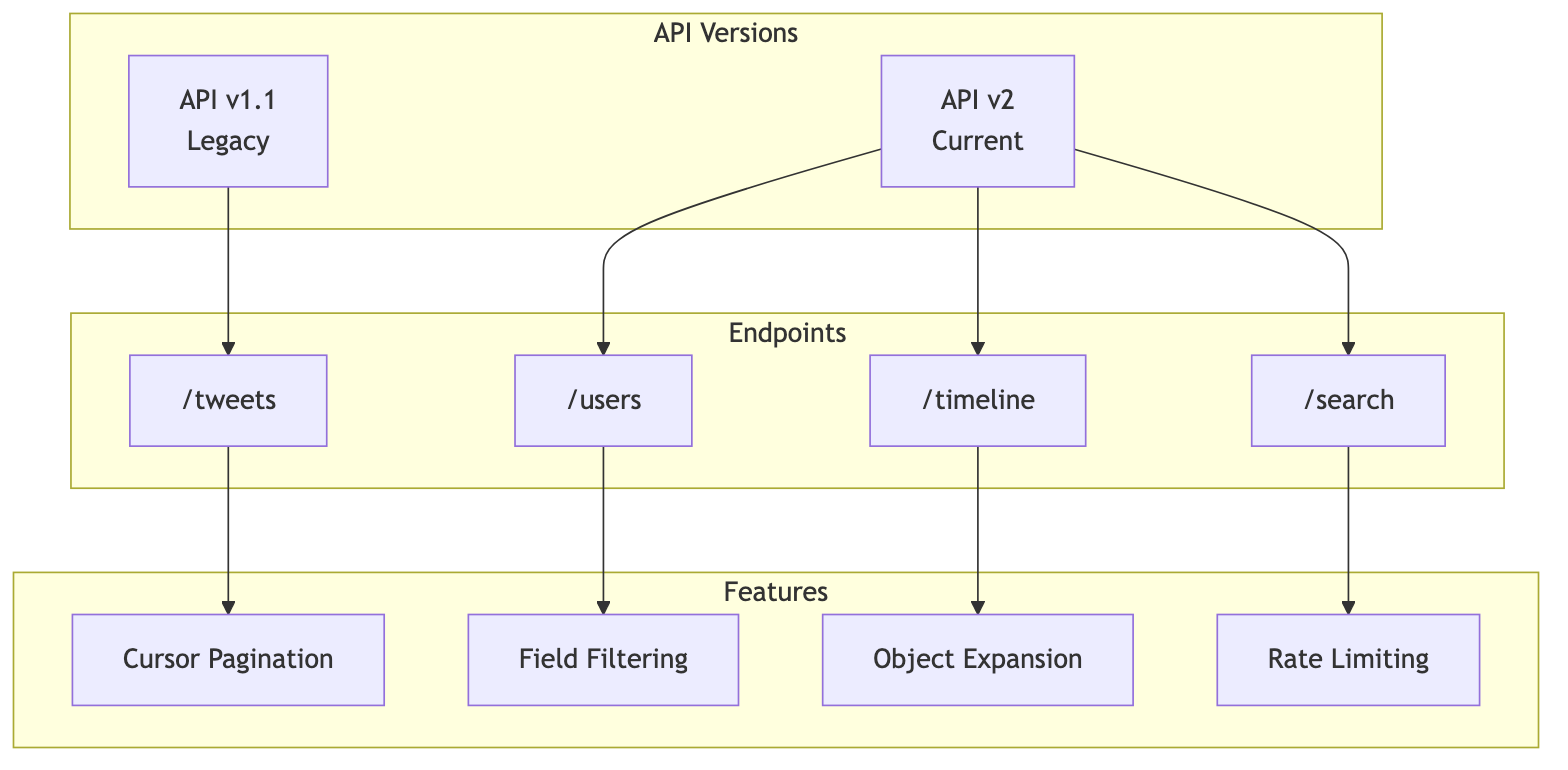

1. REST API

API Features:

RESTful design principles
OAuth 2.0 authentication
Rate limiting (per endpoint, per user)
Webhook support for real-time updates
Comprehensive error handling

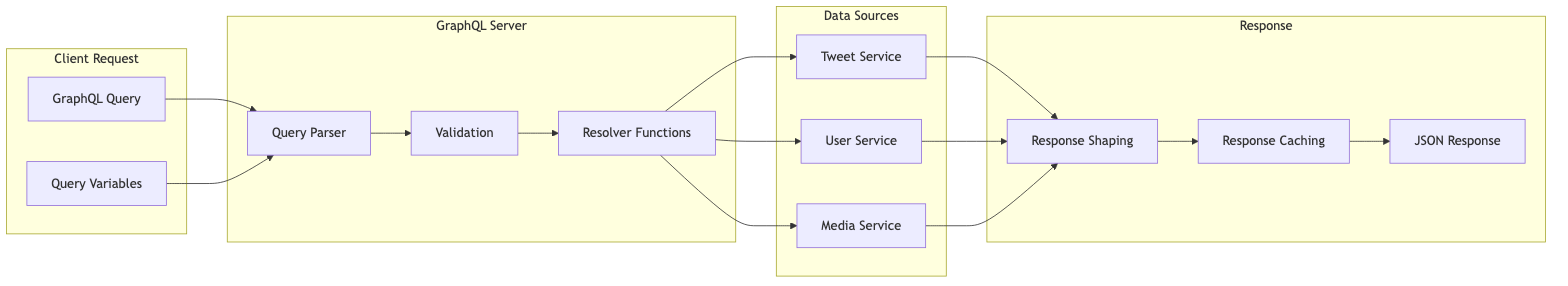

2. GraphQL API

GraphQL Benefits:

Flexible data fetching (request only needed fields)
Single request for multiple resources
Strong typing and schema validation
Efficient for mobile clients (reduced bandwidth)

Ads Platform Architecture

Ad Features:

Promoted tweets
Promoted accounts
Promoted trends
Real-time bidding (RTB)
Sophisticated targeting (demographics, interests, behaviors)
Performance analytics and reporting

Future Architecture Evolution

Emerging Technologies

Scalability Roadmap

User Growth: Support 1 billion+ users
Real-time Processing: Sub-second global propagation
AI Integration: Smarter recommendations and moderation
New Content Types: Audio, long-form, video
Global Expansion: Low-latency access worldwide

Conclusion

Twitter/X's architecture demonstrates expertise in building ultra-scalable, real-time social networking platforms. The combination of intelligent caching, efficient fanout mechanisms, robust data storage, and advanced machine learning enables Twitter to handle billions of interactions daily while maintaining sub-second response times.

Key architectural principles:

Real-time First: Optimized for immediate content distribution
Horizontal Scalability: Services scale independently
Data Locality: Cache and store data near users
Fault Tolerance: Graceful degradation and quick recovery
Continuous Evolution: Adapting to new technologies and user needs

The platform continues to evolve, incorporating new features and optimizations to meet growing demands while maintaining the speed and reliability users expect from a real-time social network.

This architecture represents Twitter/X's known systems and best practices. Actual implementation details may vary as the platform continues to evolve.
